Hyundai Tucson: Rear Seat Belt / Rear Center Seat Belt Retractor

- Components Location

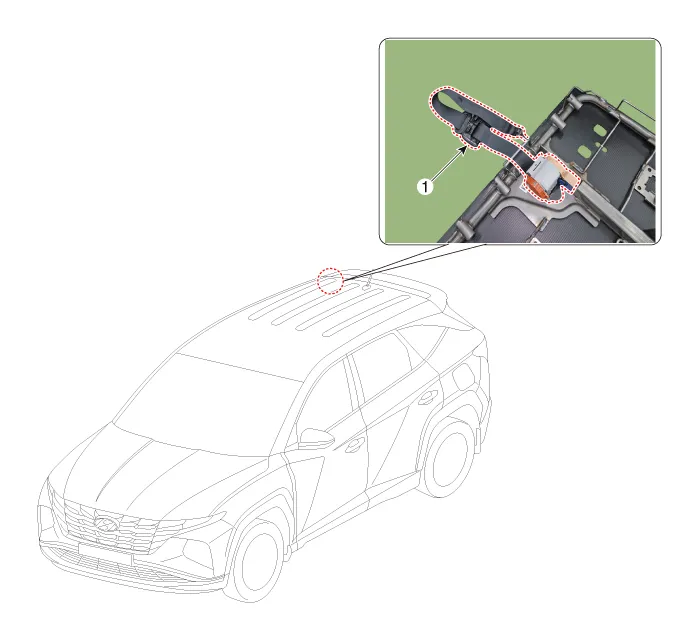

1. Rear center seat belt retractor


- Replacement



• When installing the belt, make sure not to damage the retractor.

1.Remove the rear seat back cover [RH].(Refer to Rear Seat - "Rear Seat Back Cover")

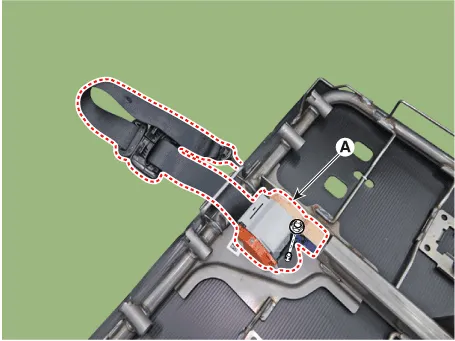

2.After loosening the mounting bolts, remove the rear center seat belt retractor (A).

3.Install in the reverse order of removal.



• Replace any damaged clips.

    Rear Seat Belt Retractor
    - Components Location 1. Rear seat belt retractor - Replacement     • When installing the belt, make sure not to damage the retractor. 1.Remove the rear pillar trim.( ...

    Rear Seat Belt Buckle
    - Replacement [LH] 1.Disconnect the negative ( - ) battery terminal. 2.Open the rear seat front block cover, loosen the mounting bolts and then lift the rear seat assembly up.Tightening torque : ...
