Hyundai Tucson: Body (Interior and Exterior) / Rear Seat Belt

Rear Seat Belt Retractor

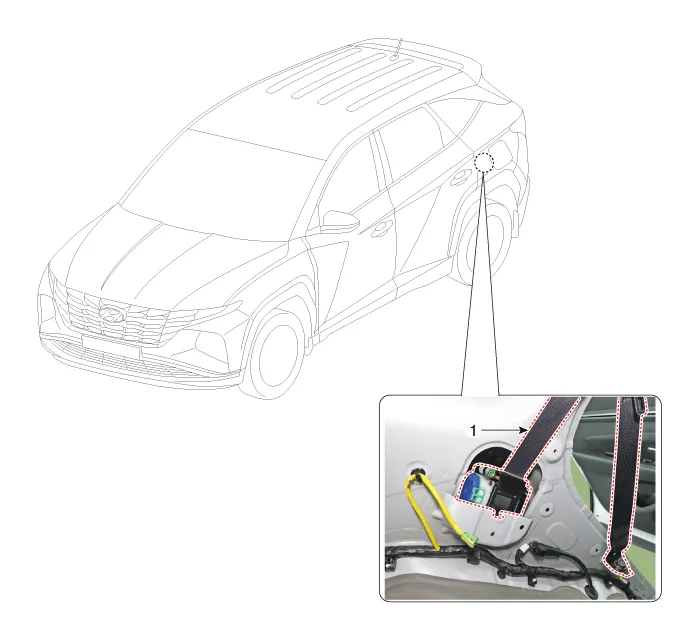

- Components Location

1. Rear seat belt retractor

- Replacement



• When installing the belt, make sure not to damage the retractor.

1.Remove the rear pillar trim.(Refer to Interior Trim - "Rear Pillar Trim")

2.Loosen the mounting bolt, remove the rear seat belt upper anchor (A).

Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

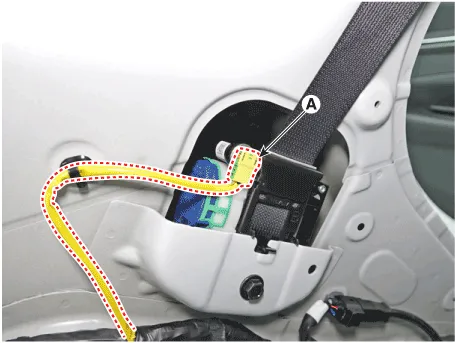

3.Disconnect the rear seat belt retractor connector (A).

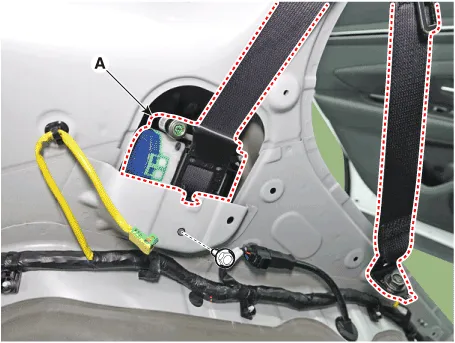

4.Loosen the mounting bolt, remove the rear seat belt retractor (A).

Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

5.Install in the reverse order of removal.



• Turn the ignition switch ON; the SRS indicator light should turn on for about 6 seconds and then go off.

• Make sure the connector is plugged in properly.

• Replace any damaged clips (or pin-type retainers).

Rear Center Seat Belt Retractor

- Components Location

1. Rear center seat belt retractor

- Replacement



• When installing the belt, make sure not to damage the retractor.

1.Remove the rear seat back cover [RH].(Refer to Rear Seat - "Rear Seat Back Cover")

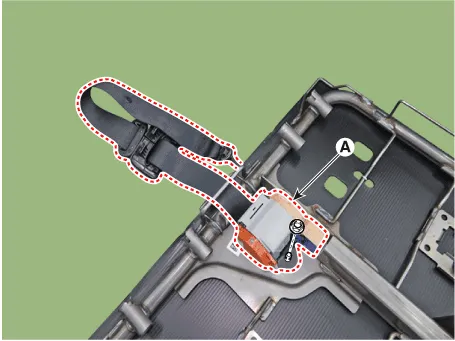

2.After loosening the mounting bolts, remove the rear center seat belt retractor (A).

3.Install in the reverse order of removal.



• Replace any damaged clips.

Rear Seat Belt Buckle

- Replacement [LH]

1.Disconnect the negative ( - ) battery terminal.

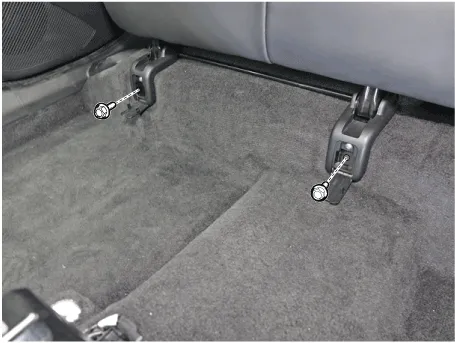

2.Open the rear seat front block cover, loosen the mounting bolts and then lift the rear seat assembly up.

Tightening torque :49.0 - 63.7 N.m (5.0 - 6.5 kgf.m , 36.2 - 47.0 lb-ft)



• Secure the rear seat cushion assembly so that it does not fall off.

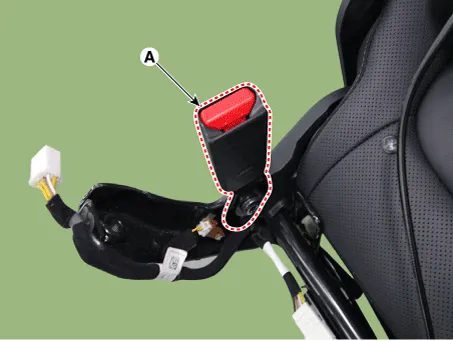

3.Loosen the mounting bolt, remove the rear seat belt buckle (A).

Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

4.To install, reverse removal procedure

[RH]

1.Disconnect the negative ( - ) battery terminal.

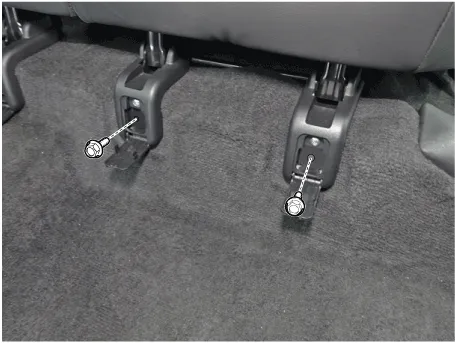

2.Open the rear seat front block cover, loosen the mounting bolts and then lift the rear seat assembly up.

Tightening torque :49.0 - 63.7 N.m (5.0 - 6.5 kgf.m , 36.2 - 47.0 lb-ft)



• Secure the rear seat cushion assembly so that it does not fall off.

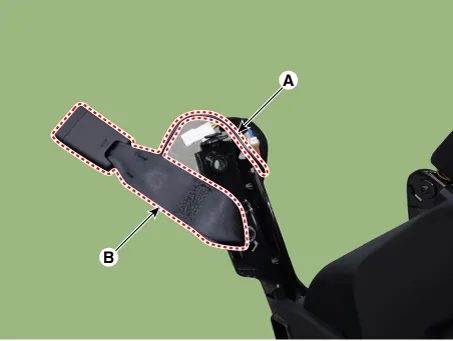

3.Disconnect the connector (A) and loosen the mounting bolt, remove the rear seat belt buckle (B).

Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

4.To install, reverse removal procedure

[CTR]

1.Disconnect the negative ( - ) battery terminal.

2.Open the rear seat front block cover, loosen the mounting bolts and then lift the rear seat assembly up.

Tightening torque :49.0 - 63.7 N.m (5.0 - 6.5 kgf.m , 36.2 - 47.0 lb-ft)



• Secure the rear seat cushion assembly so that it does not fall off.

3.Disconnect the connector (A) and loosen the mounting bolt, remove the rear seat belt buckle (B).

Tightening torque : 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m , 28.9 - 39.8 lb-ft)

4.To install, reverse removal procedure
