Hyundai Tucson: Rear Occupant Alert / Rear Occupant Alert Sensor
1.Disconnect the negative (-) battery terminal.

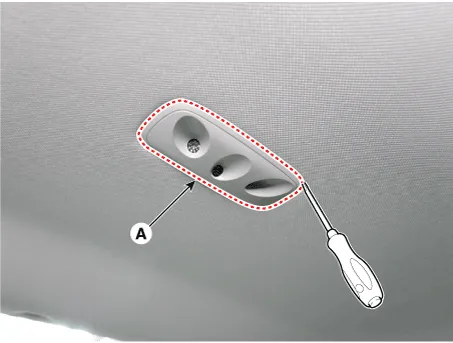

2.Remove the cover (A) by using a flat-tip screwdriver.

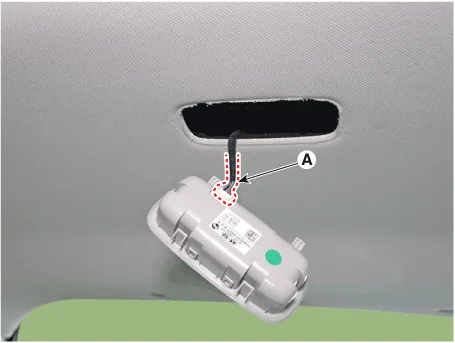

3.Disconnect the connector (A) and then remove the occupant alert sensor.
1.Install the occupant alert sensor.
2.Connect the negative (-) battery terminal.
Components and Components Location
- Components
1. Rear Occupant Alert Sensor2. Integrated body control unit3. Cluster (Message pop-up and Voice)
...
