Hyundai Tucson: Front Suspension System / Front Lower Arm G Bushing

- Replacement Steel lower arm



• Replace the lower arm G bushing if it only has a crack, noise from bushing without cracks can be improved by applying silicone oil.

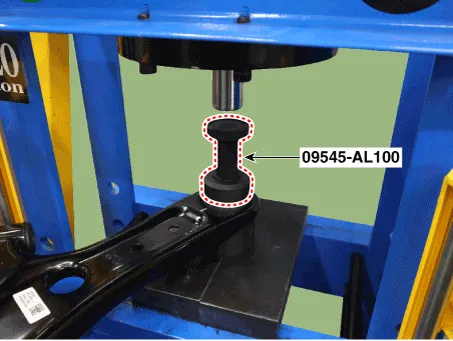

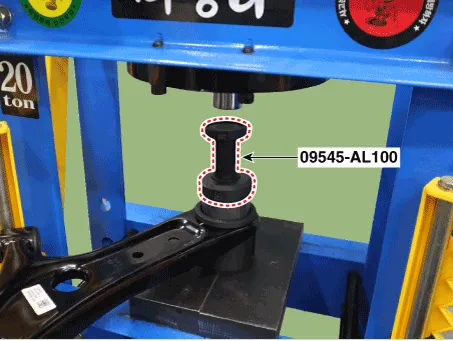

1.Replace the lower arm G bushing by using the SST (09545-AL100).



• Refer to the enclosed manual for detailed usage instructions of the lower arm G bushing SST(09545-AL100).



• Wear personal protective equipment during press operation.

• When the press is in operation, ensure that no part of the body comes into contact within the operating range.

• Due to the risk of injury from falling tools and parts, before operating the press, ensure that all tools and components are securely positioned in their proper places.



• Lubricate the bushings and mounting surface with grease during the operation.

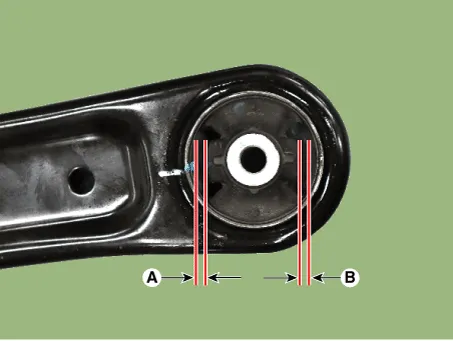

• Measure the void spacing (A), (B) to ensure that the bushing can be properly installed in the correct direction.

(A) : Ball joint side(B) : Opposite side

- Refer to the enclosed manual for void spacing specifications for each vehicle model.- There may be no difference in void spacing for used bushing due to wear.

• Be careful not to install the bushing at the incorrect angle.

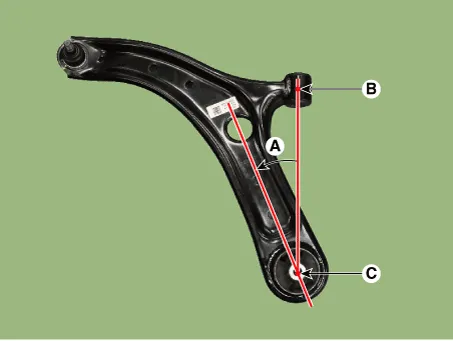

Installation angle (A) : Angle formed counterclockwise from A bushing (B) and G bushing (C) reference

- Refer to the enclosed manual for installation angle specifications for each vehicle model.

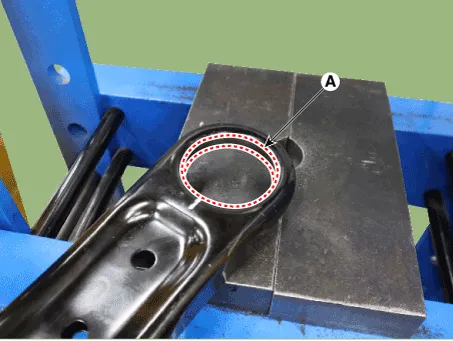

• Clean the bushing mounting surface (A) from any foreign substances using a clean cloth or similar material when installing.

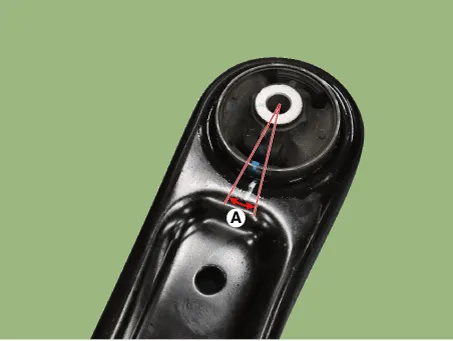

• Ensure that the marking angle (A) of the bushing and the lower arm does not deviate from the reference value.

Reference Value : ± 3°

• If excessive pressure is applied after installation is complete, it may result in damage to the components and tools.
