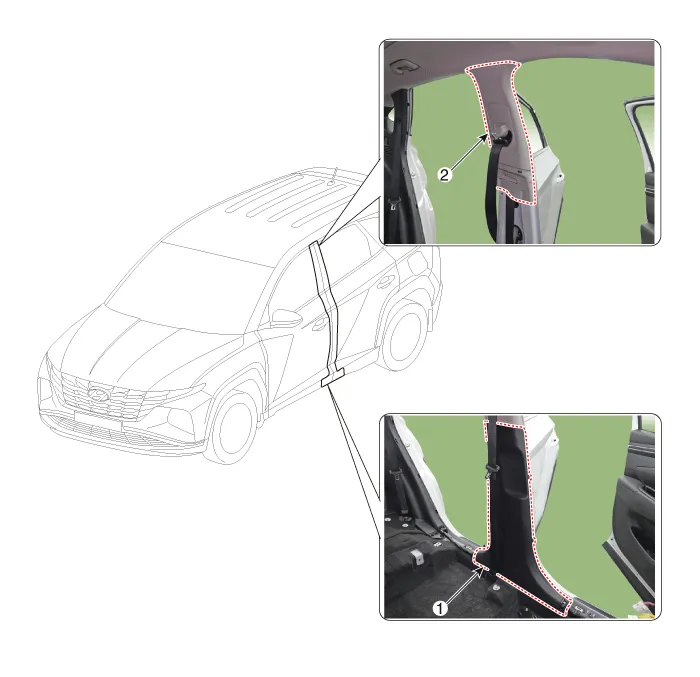

1. Center pillar lower trim
2.Center pillar upper trim
• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent hand injuries.
• Take care not to bend or scratch the trim and panels.
1.Remove the front and rear door scuff trim.(Refer to Interior Trim -"Door Scuff Trim")

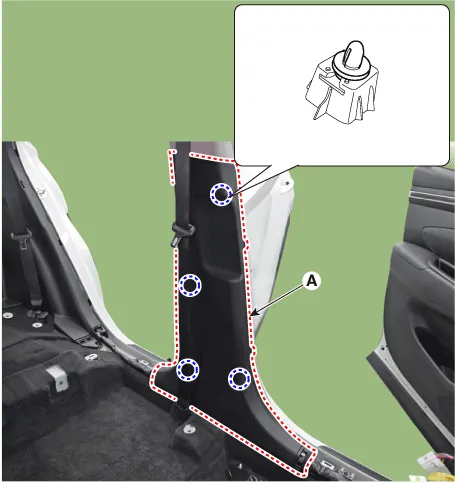

2.Using a remover and remove the center pillar lower trim (A)

3.To install, reverse removal procedure.
• Replace any damaged clips (or pin-type retainers).
• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent hand injuries.
• Take care not to bend or scratch the trim and panels.
1.Remove the center pillar lower trim.(Refer to Interior Trim -"Center Pillar Lower Trim")

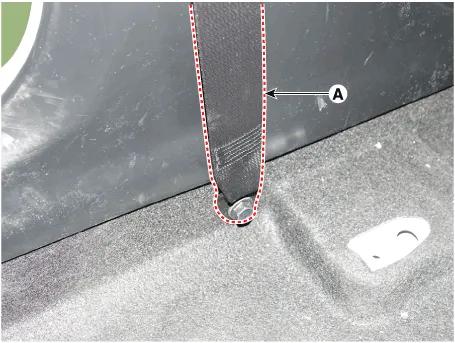

2.Loosen the mounting bolt, remove the front seat belt lower anchor (A).
Tightening torque :39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

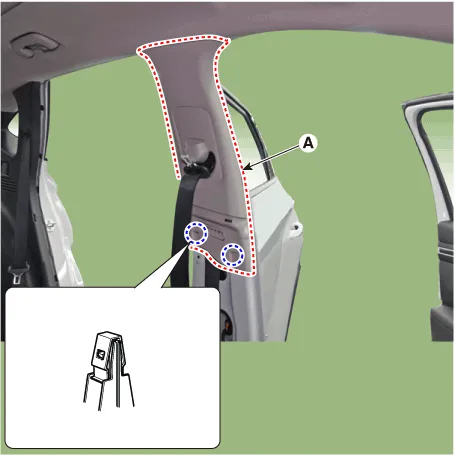

3.Remove the center pillar upper trim (A).

4.To install, reverse removal procedure.
• Replace any damaged clips (or pin-type retainers).
Front Pillar Trim
