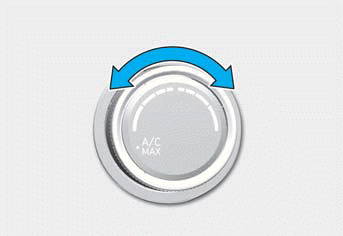

Temperature control
The temperature increases by turning the knob to the right. The temperature decreases by turning the knob to the left.
Air intake control
To select outside (fresh) air or recirculated air, press this button.
Recirculated air position
With the recirculated air selected, air from the passenger compartment is drawn through the climate control system.
Outside (fresh) air position
With the outside (fresh) air selected, air enters the vehicle from outside and is drawn through the climate control system.
Information
Using the system in the fresh air position is recommended.
Prolonged operation of the heater in the recirculated air position (without air conditioning selected) can cause fogging of the windshield and side windows and the air within the passenger compartment will become stale.
In addition, prolonged use of the air conditioning with the recirculated air position selected will result in excessively dry air in the passenger compartment.
WARNING
To prevent serious injury or death:
