Hyundai Tucson (NX4) 2022-2026 Service Manual / Body Electrical System / Lighting System / Rheostat

Hyundai Tucson: Lighting System / Rheostat

- Components

- Removal

1.Disconnct the negative (-) battery terminal.

2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel")

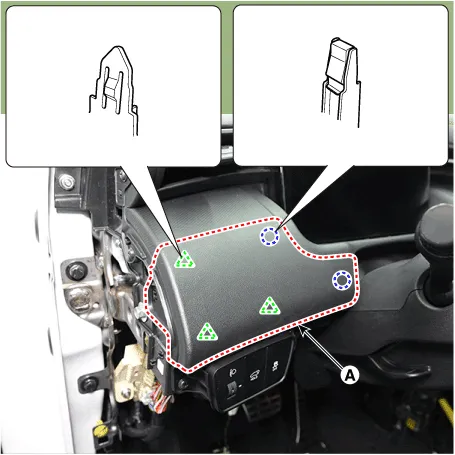

3.Loosen the mounting screw and remove the crash pad garnish [LH] (A).

4.Loosen the mounting screws and remove the crash pad lower switch assembly (A).

5.Disconnect the crash pad lower switch connector (A).

- Installation

1.Instahh the crash pad lower switch.

2.Install the crash pad garnish [LH].

3.Install the crash pad lower panel.

4.Connect the negative (-) terminal

Hazard Lamp Switch

- Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the front monitor.(Refer to AVN System - "Front Monitor") 3.Remove the hazard switch (A). - Installation 1.Install the h ...

License Lamps

- Removal 1.Disconnct the negative (-) battery terminal. 2.Using a flat-tip screwdriver and remove the license lamps. - Installation 1.Install the bulb. 2. Install the license lamp lens. ...
