Hyundai Tucson: Front Seat / Front Seat Shiled Outer Cover

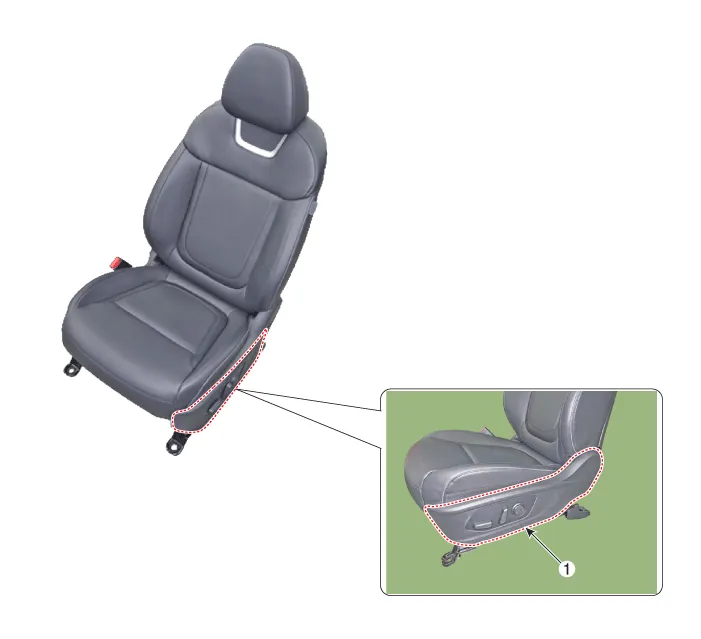

1. Front seat shield outer cover
• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent hand injuries.
• Take care not to bend or scratch the trim and panels.
1.Remove the front seat assembly. (Refer to Front Seat - "Front Seat Assembly")
2.Remove the front seat outer shield cover.

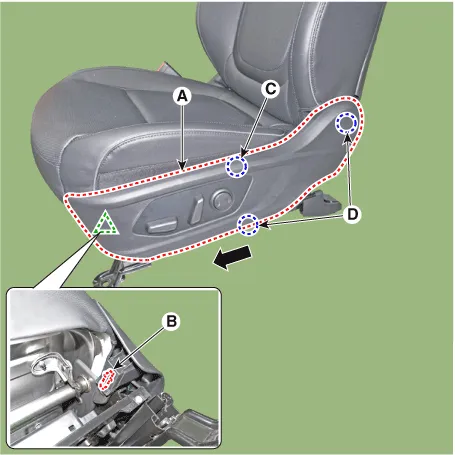

(1)Separate the clip (C) and hook (D).
(2)Press the lock pin (B), remove the front seat outer shield cover (A) by pulling it forward as shown by the arrow.

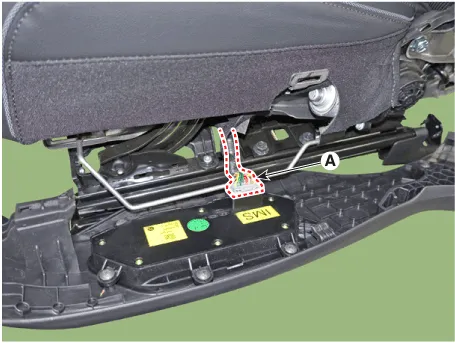

3.Disconnect the front seat power swich connector (A).
4.To install, reverse removal procedure.
• Make sure the connector is plugged in properly.
• Replace any damaged clips (or pin-type retainers).
