Hyundai Tucson: Reverse Parking Collision-Avoidance Assist (PCA) / Reverse Parking Collision- Avoidance Assist Settings

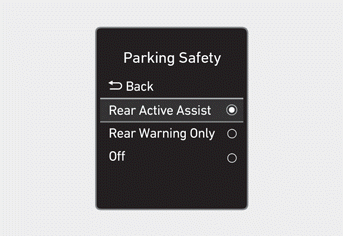

With the ignition switch ON, go to User Settings > Driver Assistance > Parking Safety (for cluster type) or Setup > Vehicle > Driver Assistance > Parking Safety (for infotainment system type) from the Settings menu to select the following:

  • If Rear Active Assist is selected, Reverse Parking Collision-Avoidance Assist warns you and assists braking when a collision with a pedestrian or object is detected.
  • If Rear Warning Only is selected, Reverse Parking Collision-Avoidance Assist warns you when a collision with a pedestrian or object is detected. Braking is not assisted.
  • If Off is selected, Reverse Parking Collision-Avoidance Assist turns off.

Information

You can change the Warning Volume settings for Reverse Parking Collision- Avoidance Assist from the Settings menu. For more information, refer to the "Driver Assistance System Settings" section in this chapter.

    Reverse Parking Collision-Avoidance Assist (PCA)
    Reverse Parking Collision-Avoidance Assist uses the wide-rear view camera and rear ultrasonic sensors to help detect pedestrians or objects when backing up. The function may warn you or assist ...

    Reverse Parking Collision- Avoidance Assist Operation
    If Rear Active Assist or Rear Warning Only is selected from the settings menu, Reverse Parking Collision-Avoidance Assist is in ready status when all of the following conditions are met: T ...
