Hyundai Tucson: Fuel Filler Door / Repair procedures
• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent hand injuries.

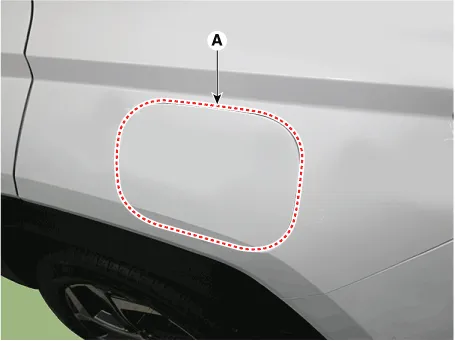

1.Open the fuel filler door (A).
2.Using a flat tip driver (A) unlock the lock pin (B) and then remove the fuel filler door cover (C).
3.To install, reverse removal procedure.
• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent hand injuries.
1.Disconnect the negative (-) battery terminal.
2.Remove the rear wheel guard.(Refer to Body Side Molding - "Rear Wheel Guard")
3.Open the fuel filler door (A).
4.Open the fuel filler door cap (A) and urea cap (B).
5.Loosen the mounting nuts, separate the filler neck assembly (A).
6.Using a screwdriver or remover, remove the fuel filler door assembly (A).
7.Disconnect the fuel filler door connector (A).
8.To install, reverse removal procedure.
Components and Components Location
- Component Location
1. Fuel filler door
...
Front Door
...
