Hyundai Tucson: Fuel Filler Door / Components and Components Location

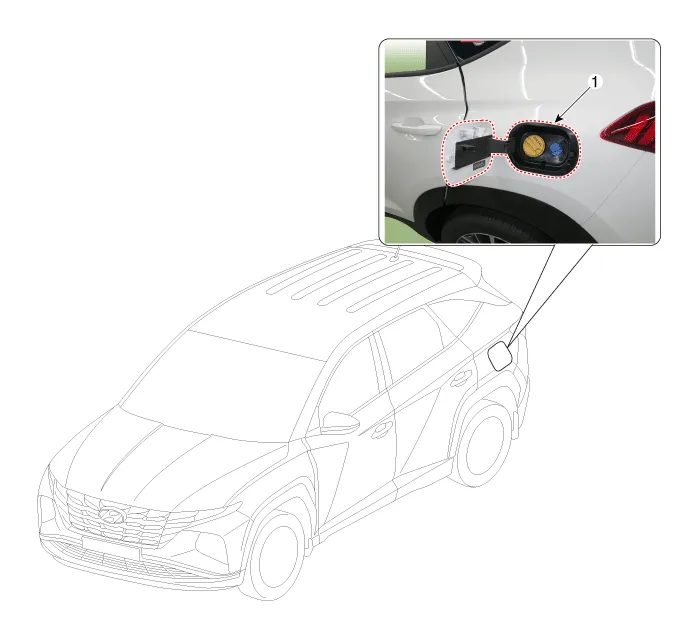

- Component Location

1. Fuel filler door

Repair procedures

- Replacement [Fuel filler door cover] • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • ...
