Hyundai Tucson (NX4) 2022-2026 Owner's Manual / Maintenance / Fuses / Fuse Panel Description. Engine compartment fuse panel (Engine room junction block)

Hyundai Tucson: Fuses / Fuse Panel Description. Engine compartment fuse panel (Engine room junction block)

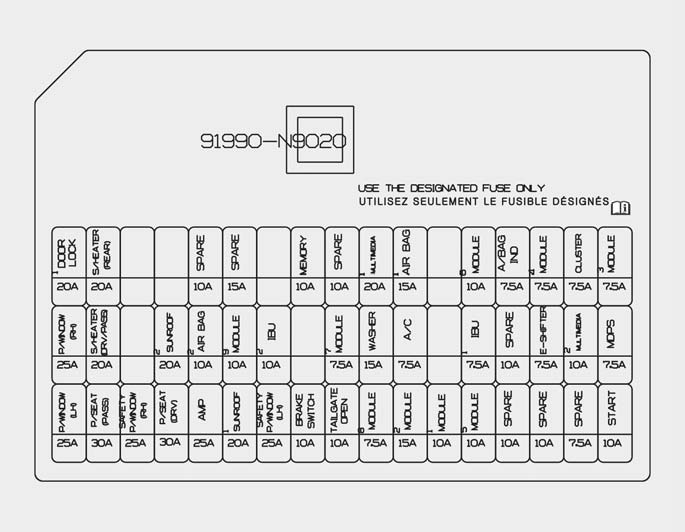

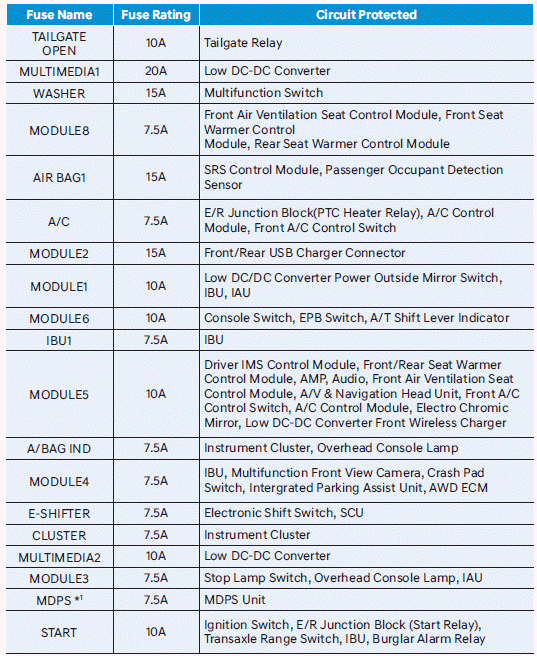

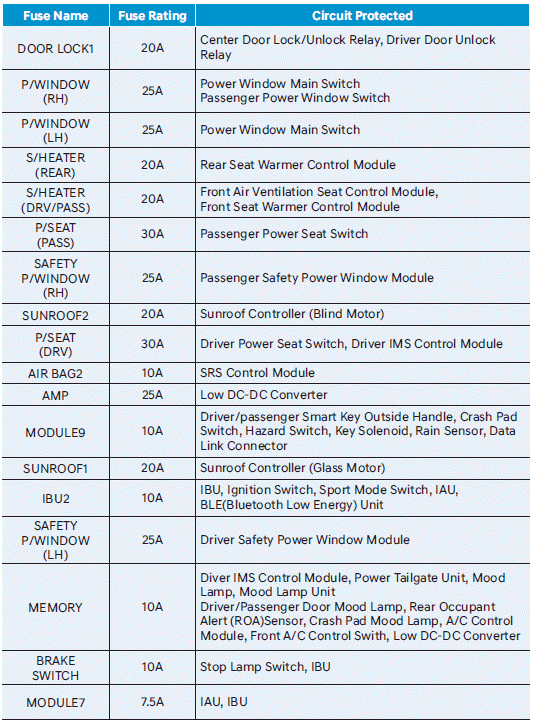

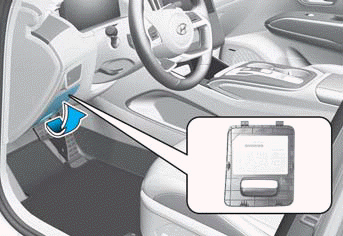

Instrument panel fuse panel

Inside the fuse panel cover, you can find the label describing fuse names and ratings.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label in your vehicle.

Instrument panel fuse panel

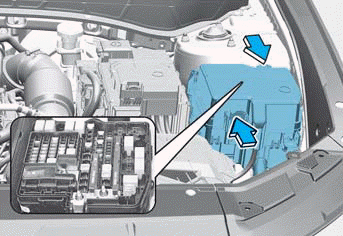

Engine compartment fuse panel (Engine room junction block)

Inside the fuse panel cover, you can find the label describing fuse names and ratings.

Information

Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect the fuse panel on your vehicle, refer to the fuse panel label in your vehicle.

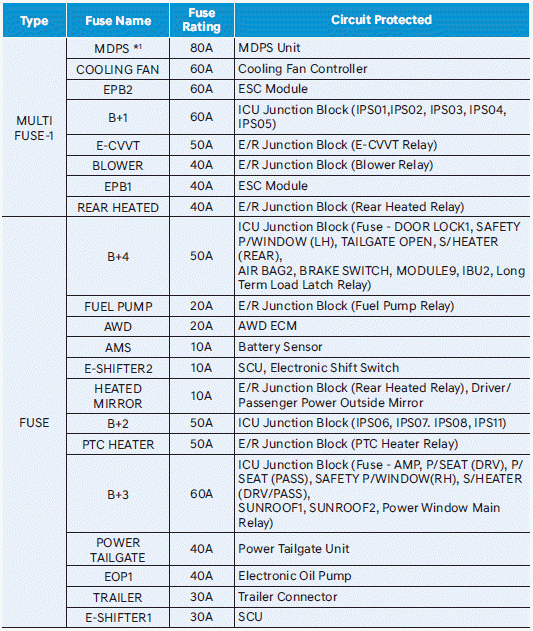

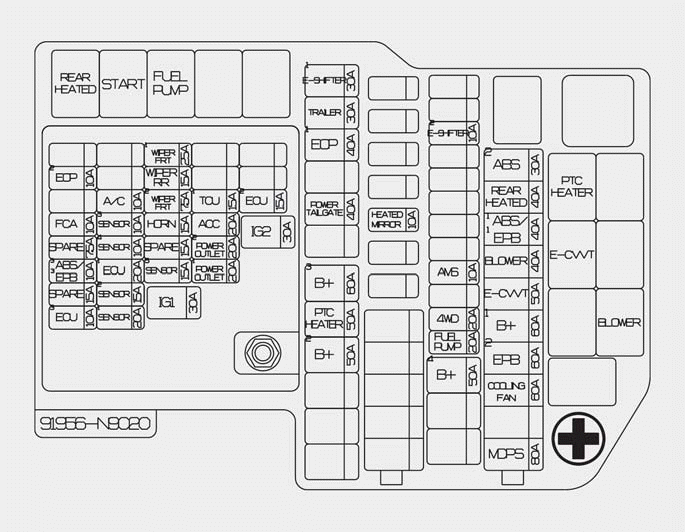

Engine compartment fuse panel

    Engine Compartment Panel Fuse Replacement
    Blade fuse/Cartridge fuse 1. Turn off the vehicle. 2. Turn off all other switches. 3. Remove the fuse panel cover by pressing the tap and pulling up. 4. Refer to the label on the inside of t ...
