Hyundai Tucson: Evaporative Emission Control System / Fuel Tank Air Filter
• Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")
1.Turn the ignition switch OFF and disconnect the battery (-) terminal.
2.Lift the vehicle.
3.Remove the rear-left wheel & tire and wheel house cover.

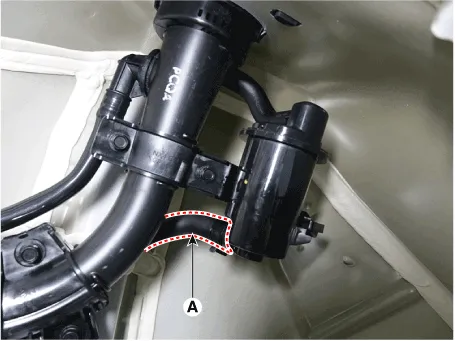

4.Separate the ventilation hoses (A).

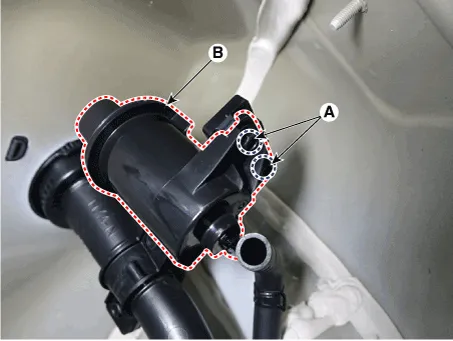

5.Remove the fuel tank air filter (B) after loosening the mounting bolts (A).

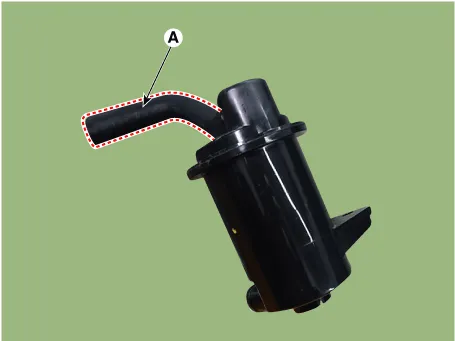

6.Remove the ventilation hose (A) from the fuel tank air filter.
1.Install in the reverse order of removal.
