Hyundai Tucson: Crash Pad / Crash Pad Lower Panel

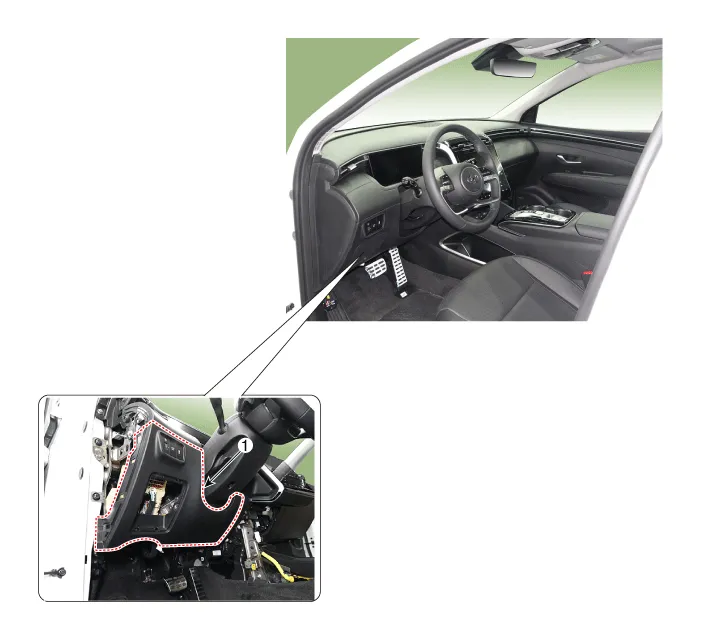

- Component Location

1. Crash pad lower panel


- Replacement



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad side cover[LH].(Refer to Crash Pad - "Crash Pad Side Cover")

3.Loosen the mounting screws, remove the crash pad lower panel (A).

4.Separate the connector (A).

5.To install, reverse removal procedure.



• Replace any damaged clips (or pin-type retainers).
