Hyundai Tucson: Airbag Module / Center Side Air Bag Module(CSAB)

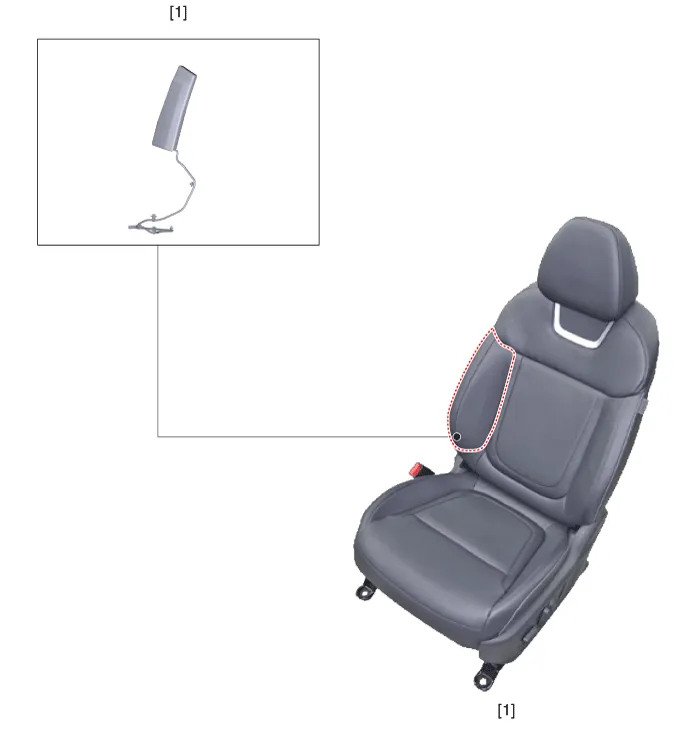

1.Center side airbag (CSAB)
1.Disconnect the battery negative terminal.
• After disconnecting the cables, wait at least 3 minutes.
2.Remove the front seat back cover.(Refer to Body - "Front Seat Back Cover")

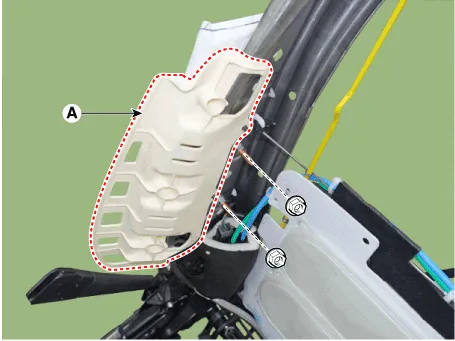

3.Loosen the CSAB mounting nuts and remove the CSAB module (A).
Tightening torque :5.9 - 7.8 N.m (0.6 - 0.8 kgf.m, 4.3 - 5.8 lb-ft)
1.Install in the reverse order of removal.
2.After installing the airbag module, confirm proper system operation.
• Switch ON the ignition. The SRS indicator light should turn on for about three-six seconds and then off.
Curtain Airbag (CAB) Module
- Description
Curtain airbags are installed inside the headliner (LH and RH) and
protect the the heads of the front seat occupants and the rear outboard
seat occupants from danger when side cra ...
Airbag Module Disposal
- Airbag Disposal
When you scrap a vehicle equipped with an airbag, you must deploy it
first.When you deploy an airbag, you need to have a skilled mechanic do
the work. The used airbag should ...
