Hyundai Tucson: Wireless Power Charger System / Wireless Power Charging Unit

- Components

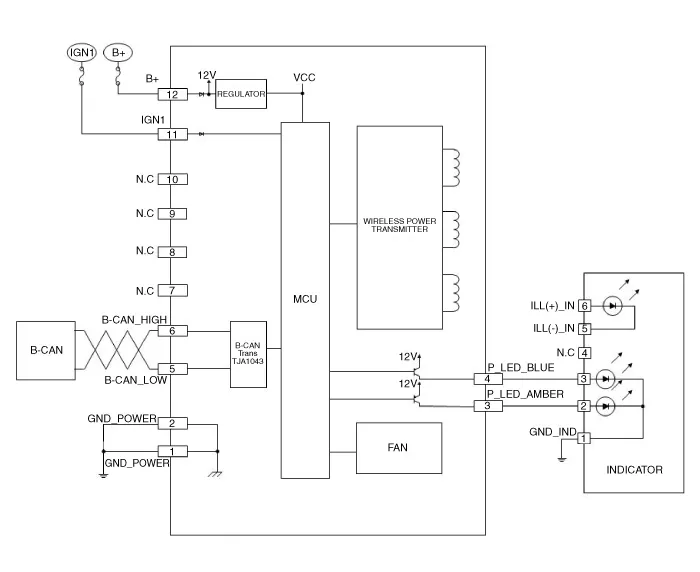

- Circuit Diagram

- Removal



Handling wireless charging system parts by wet hands may cause electric shock.

1.Disconnect the negative (-) battery terminal.

2.Remove the floor console assembly.(Refer to Body - "Floor Console Assembly")

3.Disconnect the wireless charging unit connector (A).

4.Remove the wireless power charging unit (A).

- Installation

1.Install the wireless power charging unit.

2.Connect the wireless power charging unit connector.

3.Install the floor console assembly.

4.Connect the negative (-) terminal

- Inspesction Diagnosis With Diagnostic Tool

1.In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (diagnostic tool).The diagnostic system(diagnostic tool) provides the following information.

(1)Fault Code Searching : Checking failure and code number (DTC)

(2)Data Analysis : Checking the system input/output data state

(3)Actuation test : Checking the system operation condition

(4)S/W Management : Controlling other features including system option setting and zero point adjustment

2.If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".

3.Select the 'WPC' to search the current state of the input/output data.

4.To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.

    Specification
    - Specification ItemSpecification Rated voltageDC 12V Operating voltageDC 9.0 - 16.0V Operating temperature-86 to 167°F (-30 to 75°C) Dark currentMAX 1mA Output power5 W Output frequency120 ...
