Hyundai Tucson: Cluster Display / Trip Computer (Type A)

The trip computer displays information related to driving.

Information

Some driving information stored in the trip computer resets if the battery is disconnected.

Trip modes

To change the trip mode, toggle the ˄,˅ switch on the steering wheel.

Resetting average fuel economy

  • Manual reset

To clear the average fuel economy manually, press the OK button on the steering wheel for more than 1 second when the Average Fuel Economy appears.

  • Automatic reset

To automatically reset the average fuel economy, select After vehicle start or After refueling from the Settings menu in the instrument cluster or infotainment system.
- After vehicle start: When the engine has been OFF for 3 minutes or longer, the average fuel economy resets automatically.
- After refueling: The average fuel economy automatically reset after adding 1.6 gallons (6 liters) of fuel or more and after the driving speed exceeds 1 mph (1 km/h).

Information

If equipped with a 10.25-inch instrument cluster, the fuel economy appears in the center bottom of the cluster.

Drive Info

Trip distance 1, average fuel economy 2, and instant fuel economy 3 are displayed.

The information is combined for each ignition cycle. However, when the engine has been OFF for 3 minutes or longer the Drive Info screen is reset.

To reset manually, press the OK button on the steering wheel for more than 1 second when "Drive Info" appears.

Since Refueling

After the vehicle has been refueled, the trip distance 1, average fuel economy 2, and total driving time 3 appear.

To reset manually, press the OK button on the steering wheel for more than 1 second when "Since Refueling" appears.

Accumulated Info

Accumulated trip distance 1, average fuel economy 2, and instant fuel economy 3 appear.

The information is accumulated starting from the last reset.

To reset manually, press the OK button on the steering wheel for more than 1 second when "Accumulated Info“ appears.

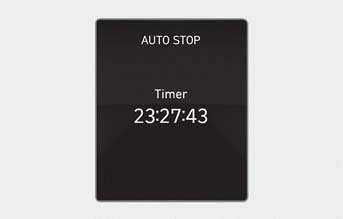

Auto stop

Displays the elapsed time of engine stop by the Idle Stop and Go system.

For more information, refer to the “Idle Stop and Go (ISG)” section in Chapter 6.

Digital speedometer

Displays the speed of the vehicle.
