Hyundai Tucson (NX4) 2022-2025 Service Manual / Advanced Driver Assistance System (ADAS) / Surround View Monitor (SVM) / Surround View Monitor (SVM) Unit

Hyundai Tucson: Surround View Monitor (SVM) / Surround View Monitor (SVM) Unit

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad center panel.(Refer to Body - "Crash Pad Center Panel")

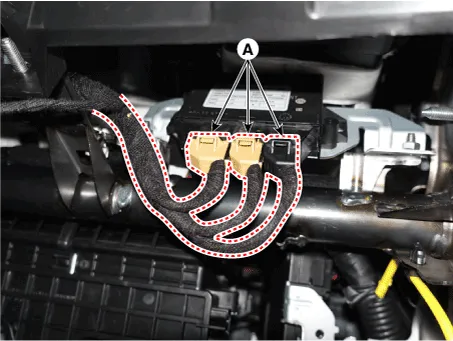

3.Disconnect the SVM unit connector (A).

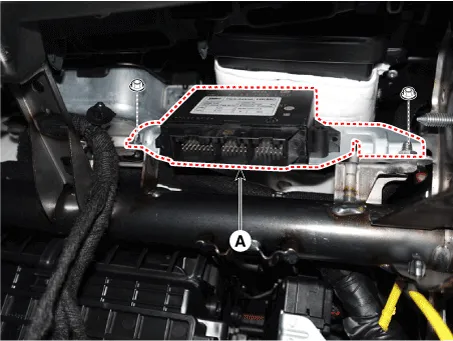

4.Loosen the mounting nuts and remove the SVM Unit (A).

- Installation

1.Install the SVM unit.

2.Install the crash pad center panel.

3.Connect the negative (-) battery terminal.
