Hyundai Tucson: Rear Wiper/Washer / Rear Wiper Blabe

- Removal



• Provides a service position for blade removal with hidden rear wiper.

• The position of the wiper blade service position operates front and rear.

1.After starting OFF, hold the MIST switch for 2 seconds.



• Perform the operation within 20 seconds after starting OFF.

• The wipers rotate 0.7s and move to the service position.

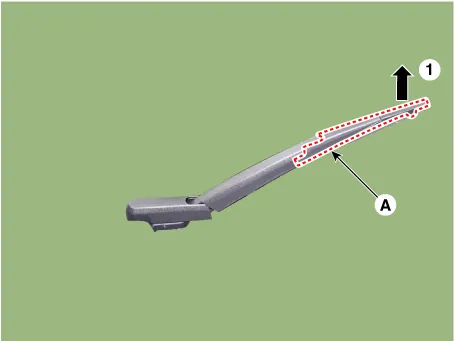

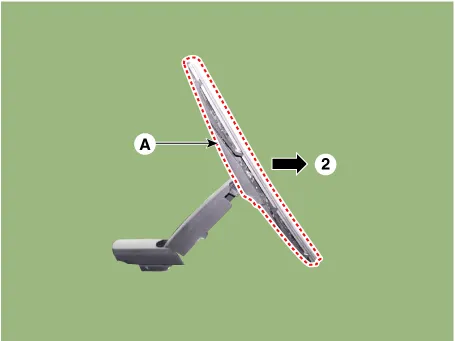

2.Remove the wiper blade (A) by pulling it in the direction of the arrow.

- Installation

1.Istall the wiper blade.

2.When the wiper MIST is activated after starting ON, the wiper returns to its original position.
