Hyundai Tucson: Rear Suspension System / Rear Coil Spring

- Removal



• When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister).(Refer to General Information - "Lift and Support Points")

1.Loosen the rear wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.

2.Remove the rear wheel and tire.(Refer to Suspension System - "Wheel")

3.Remove the rear lower arm from the rear axle after loosening the mounting bolts and nuts (A).

Tightening torque :137.2 - 156.9 N.m (14.0 - 16.0 kgf.m,  101.2 - 115.7 lb-ft)



• Set up the transmission jack under the lower arm in order to remove it in no-load condition.

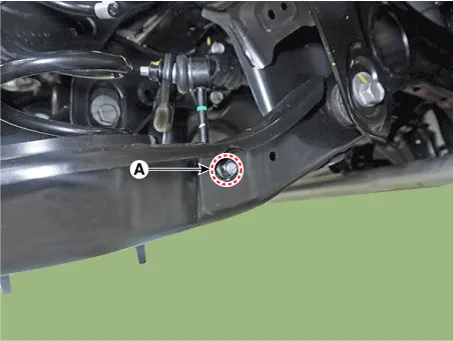

4.Remove the stabilizer bar link from the rear lower arm after loosening the mounting nut (A).

Tightening torque :49.0 - 58.8 N.m (5.0 - 6.0 kgf.m,  36.2 - 43.4 lb-ft)

5.Remove the coil spring (A).

- Inspection

1.Check the spring for distortion, aging or damage.

2.Check the spring upper pad and lower pad for aging or damage.

- Installation

1.To install, reverse the removal procedures.

2.Check the alignment.(Refer to Suspension System - "Alingment")
