Hyundai Tucson: Power Liftgate Module / Power Liftgate Latch

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the liftlgate trim.(Refer to Body - "Liftgate Trim")

3.Disconnect the latch connector (A).

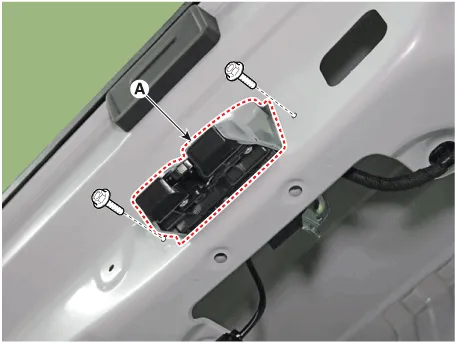

4. Remove the power liftgate latch (A) after loosening mounting bolts.

- Installation

1.nstall the power liftgate latch.

2.Install the liftgate trim.

3.Connect the negative (-) battery terminal.

- Inspection

Inspection of the Power Liftgate Latch

Refer to Power Liftgate System - "Troubleshooting"
    Power Liftgate Unit
    - Components - Circuit Diagram - Removal     1)After replacing with a new power liftgate module, check for DTC code at all times.If DTC code B24B0 exists, perfor ...

    PTG Spindle
    - Removal 1.Disconnect the negative (-) battery terminal. 2.Remove the rear pillar trim.(Refer to Body (Interior and Exterior) - Interior Trim - Rear Pillar Trim) 3.Disconnect the PTG spindle c ...
