Hyundai Tucson: Panorama Sunroof / Panorama Sunroof Deflector

- Replacement

1.Open movable glass completely pressing panorama sunroof switch.

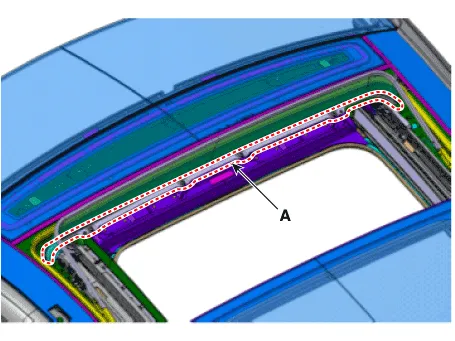

2.Loosen the panorama sunroof deflector mounting screws and remove the bracket (A).

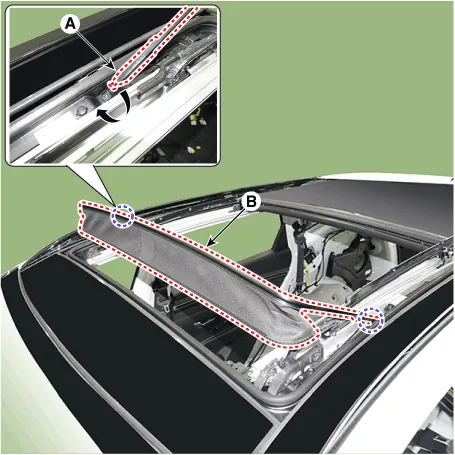

3.Separate the panorama sunroof deflector link (A) and remove the panorama sunroof deflector (B).

4.To install, reverse the removal procedure.
