Hyundai Tucson: Lubrication System / Oil Level Gauge & Pipe

- Removal and Installation



• Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

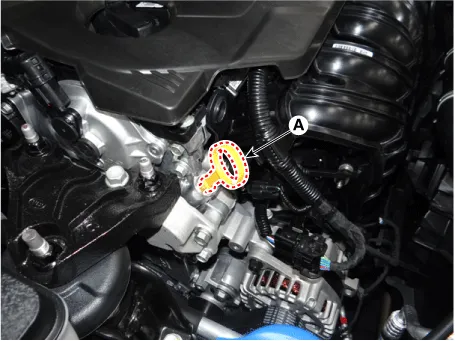

1.Remove the oil level gauge (A).

2.Remove the timing chain cover.(Refer to Timing System - "Timing Chain Cover")

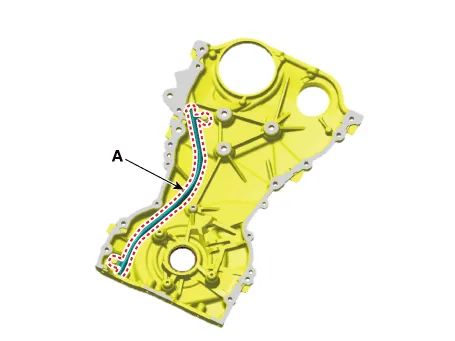

3.Remove the oil level gauge guide (A).

Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

4.Install in the reverse order of removal.
