Hyundai Tucson: Engine Control System / Manifold Absolute Pressure Sensor (MAPS)

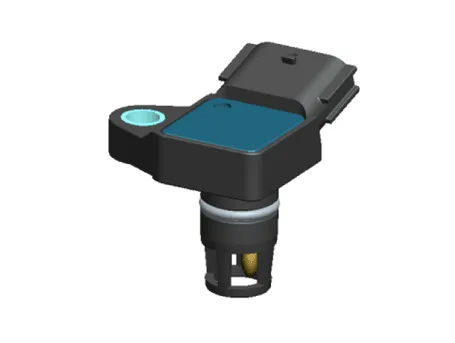

- Description Manifold Absolute Pressure Sensor (MAPS) is a speed-density type sensor and is installed on the surge tank. It senses absolute pressure of the surge tank and transfers the analog signal proportional to the pressure to the ECM. By using this signal, the ECM calculates the intake air quantity and engine speed.The MAPS consists of a piezo-electric element and a hybrid IC amplifying the element output signal. The element is silicon diaphragm type and adapts pressure sensitive variable resistor effect of semi-conductor. Because 100% vacuum and the manifold pressure apply to both sides of the sensor respectively, this sensor can output analog signal by using the silicon variation proportional to pressure change.

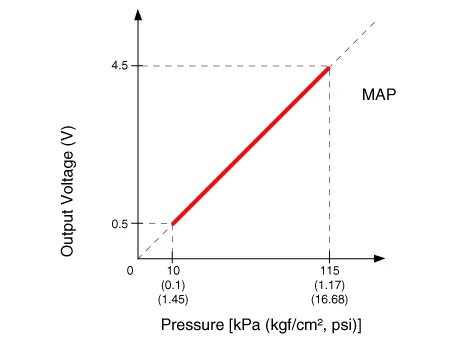

- Specification
Pressure
[kPa (kgf/cm², psi)]
Output Voltage (V)
10 (0.10, 1.45)0.5
20 (0.20, 2.9)0.88
30 (0.30, 4.35)1.26
40 (0.40, 5.80)1.64
50 (0.51, 7.25)2.02
60 (0.61, 8.70)2.4
70 (0.71, 10.15)2.79
80 (0.82, 11.60)3.17
100 (1.02, 14.50)3.93
115 (1.17, 16.68)4.5

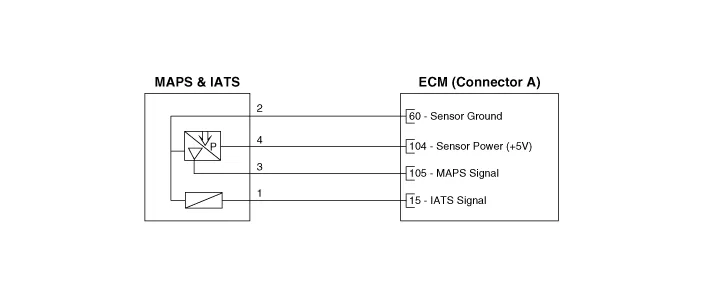

- Circuit Diagram

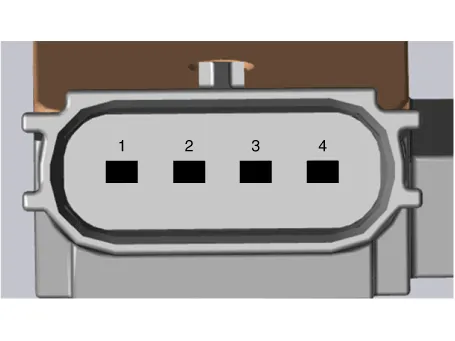

Harness Connector

- Inspection

1.In the engine control system, failure can be quickly diagnosed by using the diagnosis tool.

(1)Self diagnosis : Checking failure and code number (DTC).

(2)Current data : Checking the system input/output data state.

(3)Actuation test : Checking the system operation condition.

(4)Additional function : Controlling other features including system option setting and zero point adjustment.

- Removal

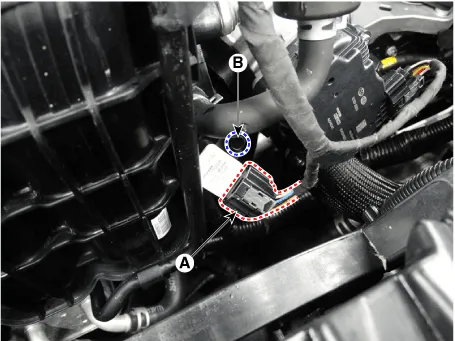

1.Turn the ignition switch OFF and disconnect the battery negative (-) cable.

2.Disconnect the manifold absolute pressure sensor connector (A).

3.Remove the installation bolt (B), and then remove the sensor from the surge tank.

Tightening Torque :9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

- Installation



• Install the component with the specified torques.

• Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.



• Insert the sensor in the installation hole and be careful not to damage when installation.

1.Install in the reverse order of removal.
