Hyundai Tucson: Convenience Features / High Beam Assist (HBA). High Beam Assist Malfunction and Limitations

High Beam Assist automatically adjusts the headlights between high beam and low beam depending on the light detected from oncoming vehicles or vehicles in front using the front view camera.

Information

Refer to the "Driver Assistance Sensors" section in Chapter 7 for the location and the general precautions of front view camera.

High Beam Assist Settings

With the ignition switch ON, go to the Settings menu to turn on High Beam Assist and deselect to turn off the function in the instrument cluster or infotainment system.

Select:

• User Settings > Lights > High Beam Assist (for cluster type)
• Setup > Vehicle > Lights > High Beam Assist (for infotainment system type)

WARNING

Only change the settings after parking your vehicle at a safe location.

High Beam Assist Operation

• After selecting High Beam Assist from the settings menu to operate High Beam Assist:

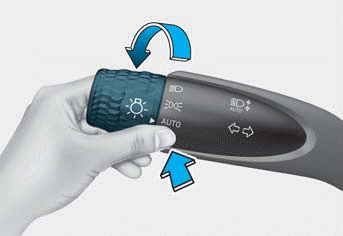

  - Place the headlight switch in the AUTO position and push the turn signal lever toward the instrument cluster. High Beam Assist () indicator light illuminates.
  - When High Beam Assist is enabled, high beams turn on when the vehicle speed is above 25 mph (40 km/h) and the High Beam () indicator light illuminates. When the vehicle speed is below 15 mph (25 km/h), high beams do not turn on and the indicator light illuminates in white.
• When High Beam Assist is operating:
  - If the turn signal lever is pulled toward you when the high beams are off, the high beams turn on. When you let go of the turn signal lever, High Beam Assist operates again.
  - If the turn signal lever is pulled toward you when the high beams are on by High Beam Assist, the low beams turn on and High Beam Assist turns off.
  - If the turn signal lever is pushed away from you, the high beams turn on and High Beam Assist turns off.
  - If the headlight switch is moved from AUTO to another position (headlight/position/off), the corresponding light turns on and High Beam Assist turns off.
• When High Beam Assist is operating, high beam switches to low beam if:
  - The headlights of an oncoming vehicle are detected.
  - The tail lights of a front vehicle are detected.
  - The headlight or tail light of a motorcycle or a bicycle is detected.
  - The surrounding ambient light is bright enough so high beams are not required.
  - Streetlights or other lights are detected.

Information

The images and colors in the instrument cluster may differ depending on the cluster type or theme selected from the settings menu.

High Beam Assist Malfunction and Limitations

System malfunction

When High Beam Assist is not working properly, the "Check High Beam Assist (HBA) system" warning message may appear, and the warning light may illuminate on the instrument cluster. Contact an authorized HYUNDAI dealer.

Limitations of High Beam Assist

High Beam Assist may not work properly in the following situations if:

• The headlights from an oncoming or front vehicle is damaged or out of the detection range.
• The headlights from an oncoming or front vehicle are covered with dust, snow, or water.
• An oncoming or front vehicle’s headlights are off but the fog lamps are on.
• There are lights that have a similar shape as a vehicle’s light ahead.
• The headlights are not repaired or replaced properly.
• The headlights are not aimed properly.
• You are driving on a narrow curved road, rough road, uphill, or downhill.
• A front vehicle is partially visible at a crossroad or on a curved road.
• There is a temporary reflector or flash ahead (construction area).
• There is a traffic light, reflecting sign, LED sign, or reflectors ahead.
• The road is wet or covered with snow or ice.
• A vehicle suddenly appears from a curve.
• The vehicle is tilted due to a flat tire or being towed.
• The headlights from an oncoming or front vehicle is not detected because of exhaust fumes, smoke, fog, snow, blizzard, water spray on the road, or windshield condensation, etc.

Information

For more information on the limitations of the front view camera, refer to the “Forward Collision-Avoidance Assist (FCA)” section in Chapter 7.

WARNING

• Always check road conditions, and if necessary, take appropriate actions to drive safely. It is your responsibility to operate your vehicle in a safe manner.
• If High Beam Assist does not operate properly, use the turn signal lever to switch between high beam and low beam.
• High Beam Assist may not operate for 15 seconds right after your vehicle is started or when the front view camera is initialized.
