Hyundai Tucson: ESC (Electronic Stability Control) System / Front Wheel Speed Sensor

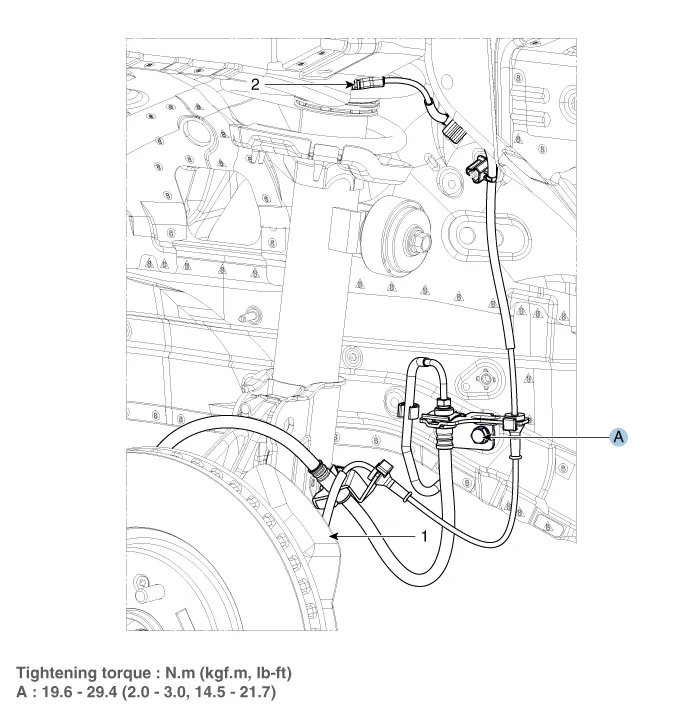

- Components

1. Front wheel speed sensor
2. Front wheel speed sensor connector

• Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

1.Loosen the wheel nuts slightly.Raise the vehicle, and make sure it is securely supported.

2.Remove the front wheel and tire (A) from the front hub.

Tightening torque :107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

• Be careful not to damage the hub bolts when removing the front wheel and tire (A).

3.Remove the front wheel guard.(Refer to Body - "Front Wheel Guard")

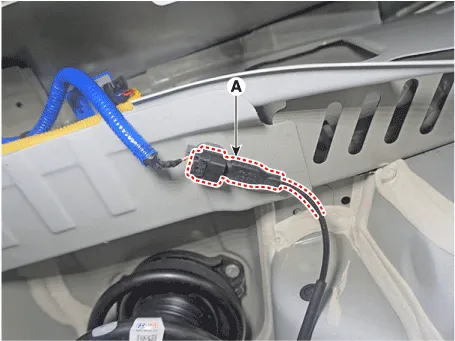

4.Disconnect the front wheel speed sensor connector (A).

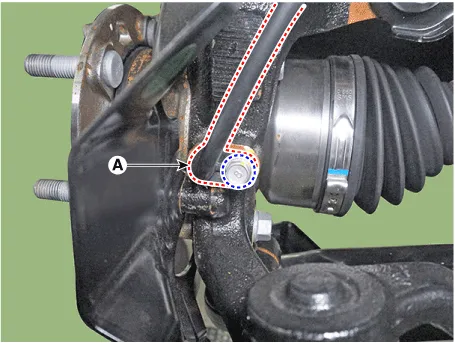

5.Loosen the bolt and then disconnect the front wheel speed sensor (A).

Tightening torque :8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

1.Measure the output voltage between the terminal of the wheel speed sensor and the body ground.

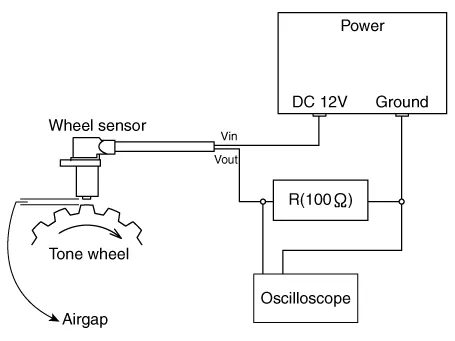

• In order to protect the wheel speed sensor, when measuring output voltage, a 100Ω resister must be used as shown.

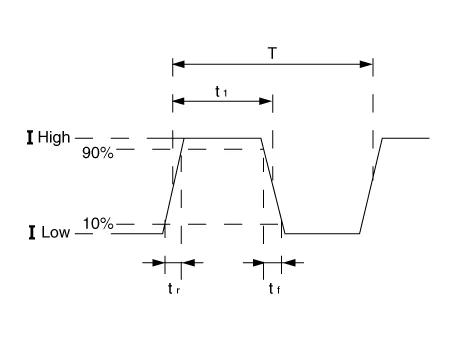

2.Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown below.

• Ⅰlow : 5.95 ~ 8.05 mA• ⅠHIgh : 11.9 ~ 16.1 mA• Frequency range : 0.03 ~ 3000 HZ

1.Install in the reverse order of removal.
