Hyundai Tucson: ESC (Electronic Stability Control) System / ESC (Electronic Stability Control) Module

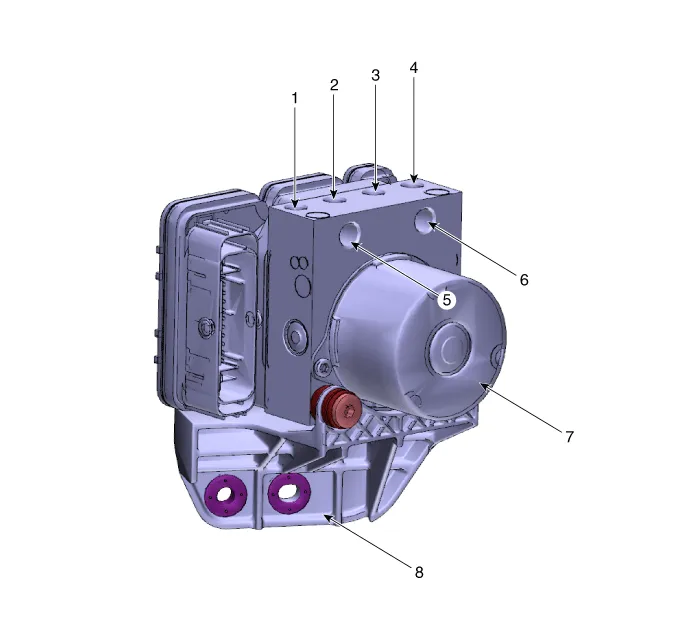

- Components

1. Front - right (FR)
2. Rear - left (RL)
3. Rear - right (RR)
4. Front - left (FL)
5. MC2
6. MC1
7. ESC Control unit (HECU) connector
8. Bracket


- Removal

1.Disconnect the battery negative ( - ) terminal.

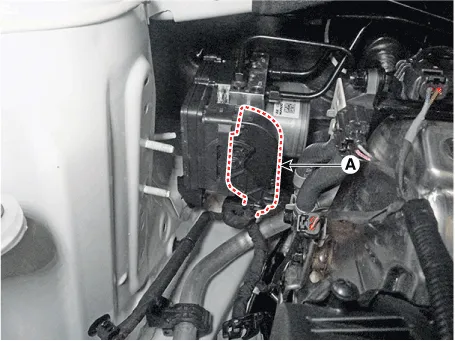

2.Pull up the lock of the ESC control unit (HECU) connector and then disconnect the connector (A).

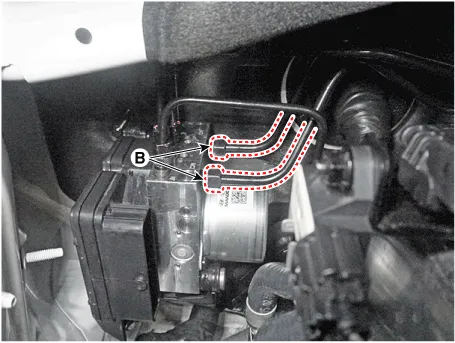

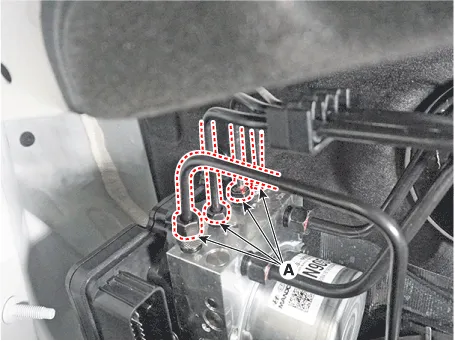

3.Separate the brake tube by removing the flare nuts (A), (B) connected to the ESC control unit (HECU).

Tightening torque :(A) : 13.7 - 16.7 N·m (1.4 - 1.7 kgf·m, 10.1 - 12.3 lb·ft)(B) : 18.6 - 22.6 N·m (1.9 - 2.3 kgf·m, 13.7 - 16.6 lb·ft)

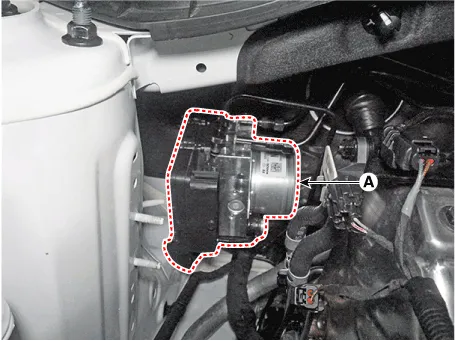

4.Remove the bracket mounting nuts and remove the ESC control unit (HECU) (A) from the vehicle.

Tightening torque :16.7 - 25.5 N·m (1.7 - 2.6 kgf·m, 12.3 - 18.8 lb·ft)

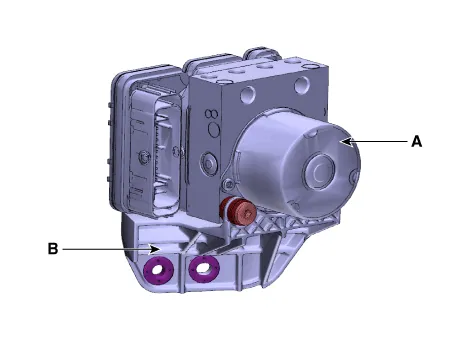

5.Remove the bolts to remove the bracket (B) from the ESC control unit (HECU) (A).

- Installation

1.Install in the reverse order of removal.

2.After installation, bleed the brake system. (Refer to Brake System - "Brake Bleeding Procedures")

3.Conduct the Variant Coding.

4.Conduct the Auto Detected Sensor Calibration.

5.Conduct the Longitudinal G Sensor Calibration.

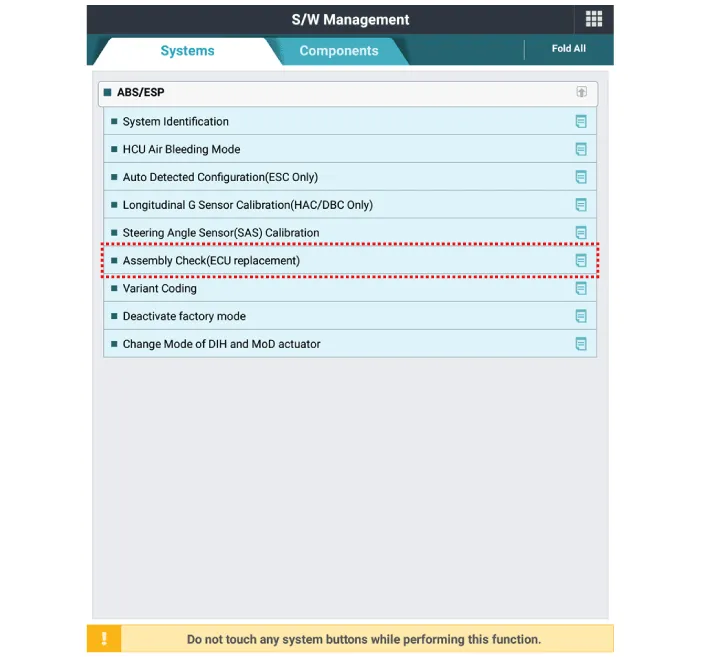

6.After replacing the ESC control unit execute the "Assembly Check (ECU replacement)" of the additional function to check that the mounting is successful.

- Adjustment Perform diagnostic procedure by using diagnostic device as shown below :

1.Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.

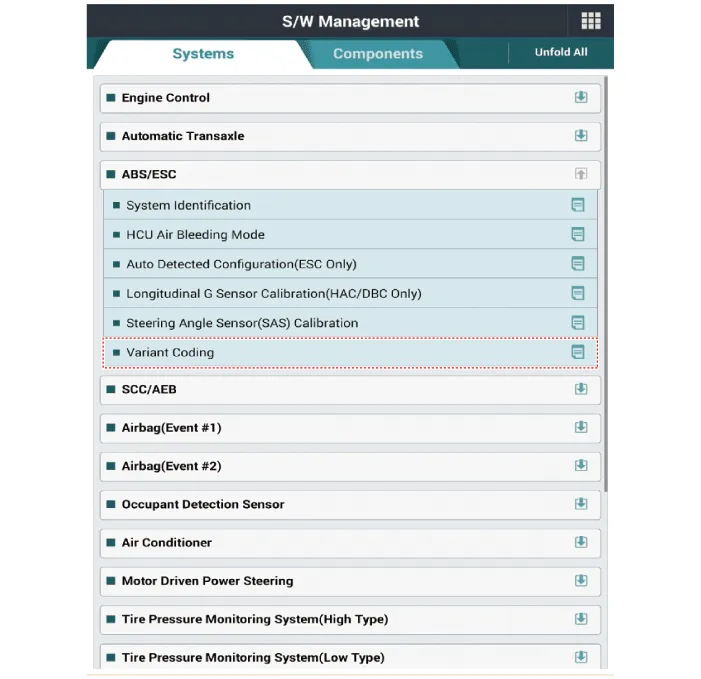

2.Select the "vehicle model" and "ABS/ESC" on diagnostic tool vehicle selection screen, then select OK.[Variant Code Reset]

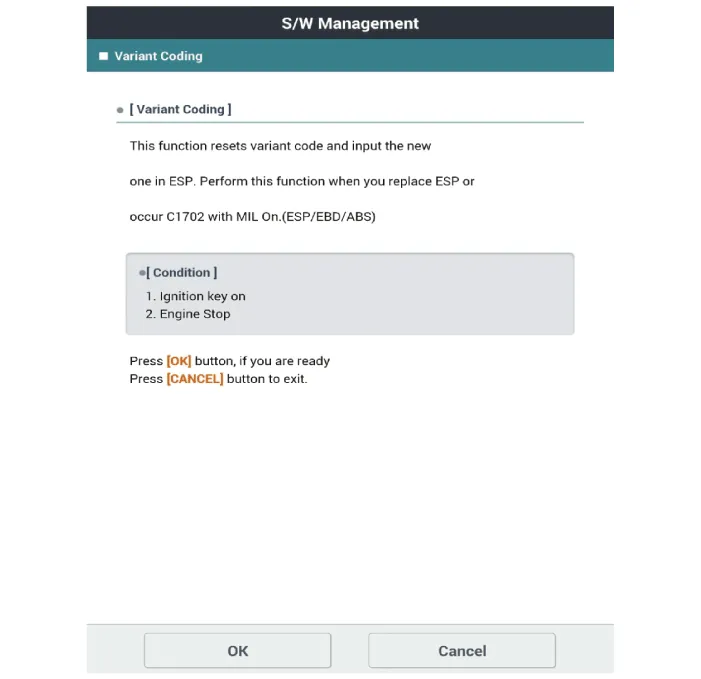

[Variant Coding]

[Longitudinal G Sensor Calibration]

Assembly Check (ECU replacement)
