Hyundai Tucson: Cylinder Block / Drive Plate

- Removal and Installation



• Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.(Refer to General Information - "Lift and Support Points")

1.Remove the Automatic Transaxle Assembly.(Refer to the Automatic Transaxle System - "Automatic Transaxle")

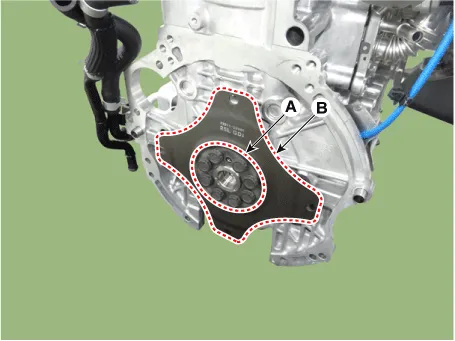

2.Remove the driver plate adaptor (A) and driver plate (B).

Tightening torque :127.5 - 137.3 N.m (13.0 - 14.0 kgf.m, 94.0 - 101.3 lb-ft)



• Always use the new drive plate mounting bolts.

3.Install in the reverse order of removal.
