Hyundai Tucson (NX4) 2022-2025 Service Manual / Body (Interior and Exterior) / Roof Trim / Components and Components Location

Hyundai Tucson: Roof Trim / Components and Components Location

- Components

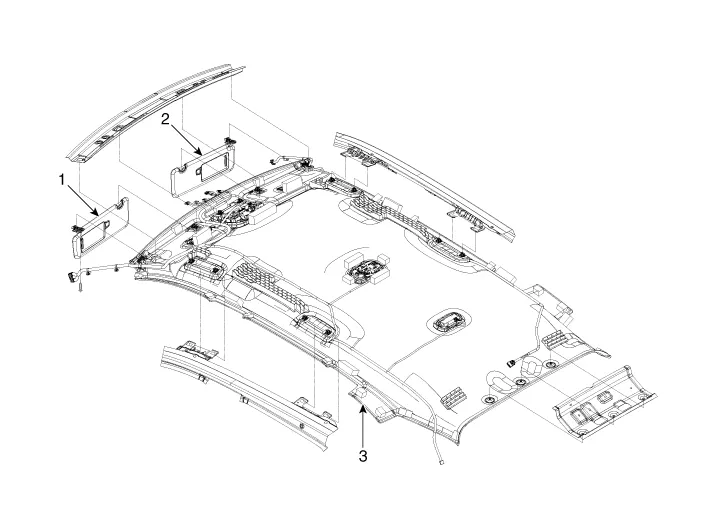

[General type]

1. Sunvisor [LH]
2 . Sunvisor [RH]
3 . Roof trim

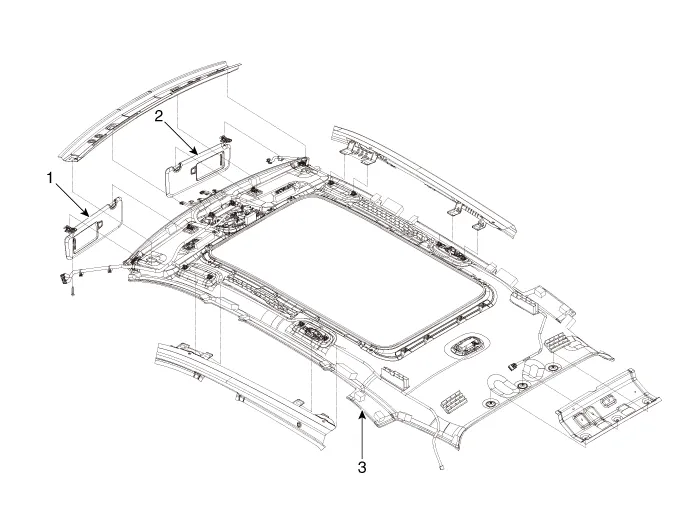

[Panorama sunroof type]

1. Sunvisor [LH]
2 . Sunvisor [RH]
3 . Roof trim
