Hyundai Tucson: Rear Door / Components and Components Location

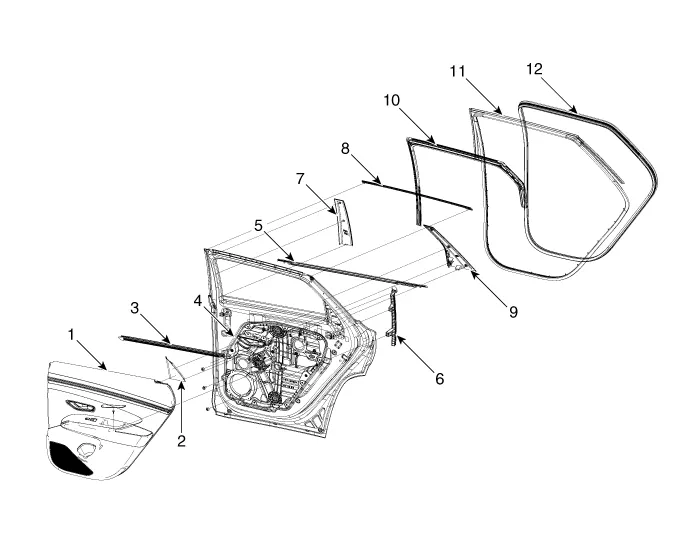

1. Rear door trim
2. Rear door delta inner cover
3. Rear door belt inside weatherstrip
4. Rear door module
5. Rear door belt outside weatherstrip
6. Rear door channel
7. Rear door frame garnish [RH]
8. Rear door frame garnish [LH]
9. Rear door frame garnish
10. Rear door window glass run
11. Rear door side weatherstrip
12. Rear door body side weatherstrip
Rear Door
...
Repair procedures
- Adjustment
Glass Adjustment
• Check the glass run channel for damage or deterioration, and replace it if necessary.
1.Remove the rear door trim.(Refer to Rear Door - "Re ...
