Hyundai Tucson: Tires/Wheels / Wheel

- Components

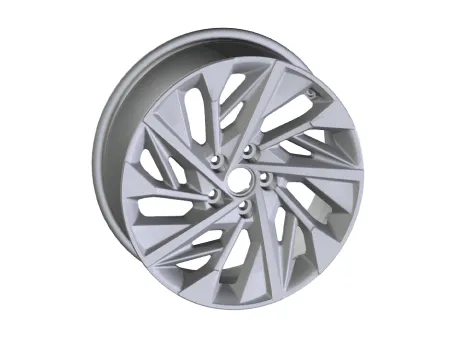

17 inch (7.0J X 17) 18 inch (7.5J X 18)

19 inch (7.5J X 19) 19 inch (7.5J X 19)


- Removal

1.Remove the rear wheel and tire (A).



• Be careful not to damage the hub bolts when removing the rear wheel and tire (A).

[Front]

[Rear]

- Installation

1.Install the rear wheel and tire (A).[Front]

[Rear]

2.Tighten the hub nuts as follows.

Tightening torque :107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)



• When using an impact gun, final tightening torque should be checked using a torque wrench.



If the vehicle starts within 19 minutes after the replacement of the wheel of the stopped vehicle, the TPMS Malfunction Indicator on the instrument cluster illuminates.

– The above symptom is due to communication failure between the BCM and the replaced TPMS ID.

– This communication failure indicator turns off in 19 minutes after the vehicle stops through the BCM’s automatic learning process of TPMS ID.(When driving the vehicle after stopping for over 19 minutes, the indicator turns off automatically.)

- Run out inspection

1.Jack up the vehicle.

2.Measure the wheel Run-out by using a dial indicator as illustration below.

Run - outAluminum
Radial mm (in.)Below 0.3 (0.0118)
Lateral mm (in.)Below 0.3 (0.0118)

3.If measured value exceeds the standard value, replace the wheel.

    Tire
    - Tire Wear     • Using tires and wheel other than the recommended sizes could cause unusual handling characteristics and poor vehicle control, resulting in a serious accident ...

    Alignment
    - Adjustment When using a commercially available computerizedwheel alignment equipment to inspect the front wheelalignment, always position the vehicle on a levelsurface with the front wheels f ...
