Hyundai Tucson: Cluster Display / View Modes

The information provided may differ depending on which functions are available on your vehicle.

Trip computer mode

The trip computer mode displays information related to the vehicle driving parameters including fuel economy, tripmeter information, and vehicle speed.

For more information, refer to the "Trip Computer" section in this chapter.

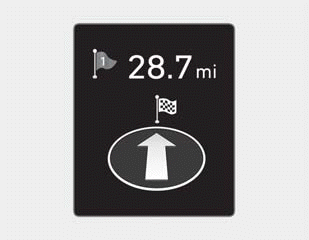

Turn By Turn (TBT) mode

Turn-by-turn navigation and distance/ time to destination appear when Turn by Turn mode is selected.

Driving Assist mode

LKA/SCC/LFA/HDA

Displays the state of Lane Keeping Assist, Smart Cruise Control, Lane Following Assist and Highway Driving Assist.

For more information, refer to each system information in Chapter 7.

Driver Attention Warning

Displays the state of Driver Attention Warning (DAW).

For more information, refer to the “Driver Attention Warning (DAW)” section in Chapter 7.

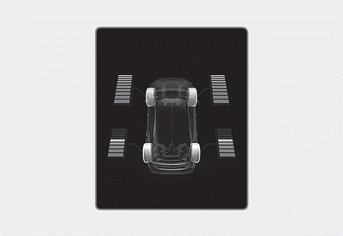

Driving force distribution (AWD)

Displays information related to AWD driving force distribution.

If the vehicle is in AWD lock state, this mode does not appear.

For more information, refer to the "4 Wheel Drive (AWD)" section in Chapter 6.

Tire Pressure

For more information, refer to the "Tire Pressure Monitoring System (TPMS)" section in Chapter 8.

Master warning mode

The Master Warning Light illuminates if one or more of the following occurs:

  • Forward Collision-Avoidance Assist malfunction (if equipped)
  • Forward Collision-Avoidance Assist radar blocked (if equipped)
  • Blind-Spot Collision-Avoidance Assist malfunction (if equipped)
  • Blind-Spot Collision-Avoidance Assist radar blocked (if equipped)
  • LED headlight malfunction (if equipped)
  • High Beam Assist malfunction (if equipped)
  • Smart Cruise Control malfunction (if equipped)
  • Smart Cruise Control radar blocked (if equipped)
  • Tire Pressure Monitoring System (TPMS) malfunction

If the issue is resolved, the Master Warning Light and the Master Warning icon are turned off.
