Hyundai Tucson: Sunroof / Sunroof Sunshade

- Replacement

1.Remove the sunroof assembly.(Refer to Sunroof - "Sunroof Assembly")

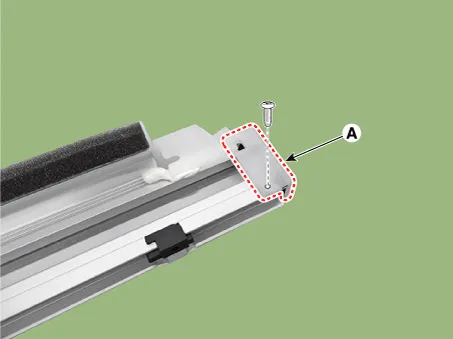

2.After loosening the mounting screws, remove the drip rail assembly (A).

3.After loosening the mounting screws, disengage the rear drip (A).

4.Remove the stopper (A) by pushing it in the direction of the arrow.

5.Remove the sunroof sunshade (A) by pushing it backward.

6.To install, reverse the removal procedure.
