Hyundai Tucson: Panorama Sunroof / Roller Blind

- Removal

1.Remove the roof trim.(Refer to Roof Trim - "Roof Trim Assembly")

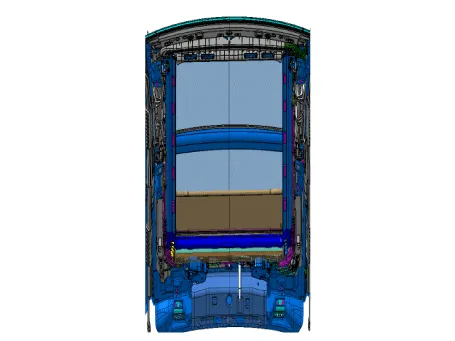

2.Open the roller blind using the panorama sunroof switch.



• Leave 10 - 20cm (0.3937 - 0.7874 in) of the roller blind unopened.

3.Put a fixed pin (A) into the hole located inside the groove of the right side roller blade side bracket. Becareful not to release tension.

4.Remove the roller blind bars (A) by pulling (①) and rotating (②) both the roller blind bars.

5.Loosen the mounting screws, remove the roller blind lower support panel (A).

- Installation

1.Remove the roller blind fixing fin (A) and then pull out the roller blind by approximate 100cm. After that, reinstall the fixing pin.

2.Insert the techlon on both ends of roller blind to the guide (Preparation of roller blind is finished).

3.Insert the techlon portion of blind to the rail.

4.Fix the handle to the roller blind shoe (A).

5.Remove the roller blind fixing pin (A) and then insert the roller blind to rail.

6.Tighten the mounting screws after installing the roller blind lower suppeort (A).
