Hyundai Tucson: Panoramic Sunroof / Resetting the Sunroof
.png)

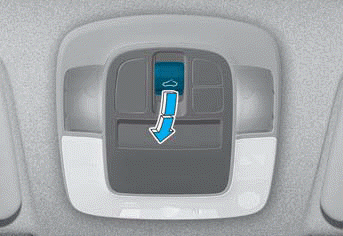

To reset the Sunroof:
1. Start the vehicle in P (Park).
2. Make sure the power sunshade and
sunroof glass are in the fully closed
position.
3. Release the switch when the power
sunshade and sunroof glass are fully
closed.
4. Push the switch forward until the
power sunshade and sunroof glass
move slightly. Then release the switch.
5. Push and hold the sunroof switch
forward again until the power
sunshade and sunroof glass slide
open and close.
Do not release the switch until the operation is completed. If you release the switch, start again from Step 2.
Information
If the sunroof is not reset after the vehicle battery is disconnected or discharged, or the sunroof fuse is blown, the sunroof may not operate normally.
Automatic Reversal
If the power sunshade or sunroof glass
senses any obstruction while closing, it
reverses direction then stops.
The automatic reverse feature may not
work if a thin or soft object is caught
...
Sunroof Open Warning
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime sounds for several
seconds and the sunroof open warning
appears on the cluster display.
Close the ...
