Hyundai Tucson: Fuses And Relays / Relay Box (Engine Compartment)

- Inspection Power Relay (Type A)

1.There should be continuity between the No.30 and No.87 terminals when power and ground are connected to the No.85 and No.86 terminals.

2.There should be no continuity between the No.30 and No.87 terminals when power is disconnected.[Engine room relay box]

Replacement of PCB Block

1.Disconnect the negative (-) battery terminal.

2.Push 4 hooks in the engine room relay box out to the arrow direction and put up the PCB block (A).

3.Disconnect the connector and remove the the PCB block (A).

Fuse

1.Be sure there is no play in the fuse holders, and that the fuses are held securely.

2.Are the fuse capacities for each circuit correct?

3.Are there any blown fuses?



• If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always determine why the fuse blew first and completely eliminate the problem before installing a new fuse.

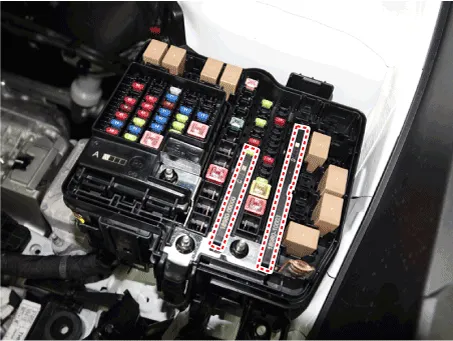

Multi Fuse



• Multi fuse (A) is needed to replace in the mass when it damaged only one fuse.

• Use the multi fuse capacities for each circuit correctly.
