Hyundai Tucson: Rear Door / Rear Door Window Glass

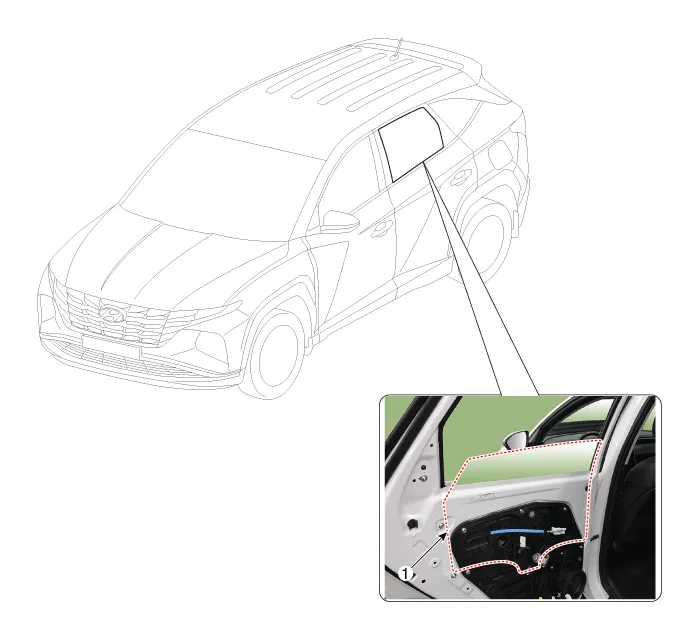

- Components Location

1. Rear door window glass


- Replacement

1.Remove the rear door trim.(Refer to Rear Door - "Rear Door Trim")

2.Remove the rear door belt outside weatherstrip.(Refer to Rear Door - "Rear Door Belt Outside Weatherstrip")

3.Remove the rear door belt inside weatherstrip.(Refer to Rear Door - "Rear Door Belt Insdie Weatherstrip")

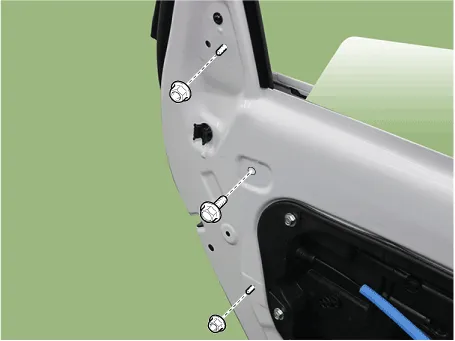

4.Loosen the mounting nuts and bolt, separate the rear door channel.

Tightening torque :Bolt : 76.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)Nut : 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

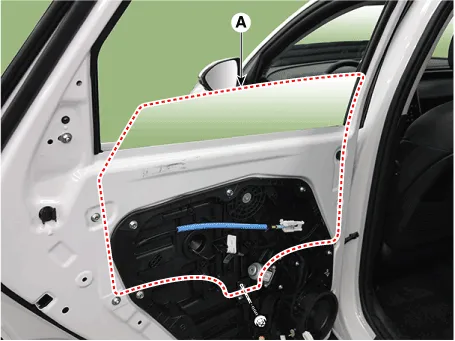

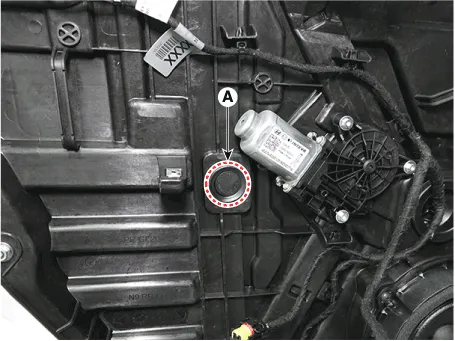

5.Remove the plug hole (A).

6.Lower the glass by operating the power window switch until the glass mounting bolt is exposed in the plug hole.



• Be careful not to drop the glass and/or scratch the glass surface.

7.After unscrewing the mounting bolt as loosely as possible and completely loosening the bolt, tilt the rear door window glass (A) to pull out it upwards.

Tightening torque : 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

8.To install, reverse the removal procedure.



• Make sure that the glass rolls up and down smoothly.

• Adjust glass position as needed.

• Make sure the door locks and opens properly.

• Replace any damaged clips (or pin-type retainers).
