Hyundai Tucson: Rear Door / Rear Door Belt Inside Weatherstrip

- Replacement

1.Remove the rear door trim.(Refer to Rear Door - "Rear Door Trim")

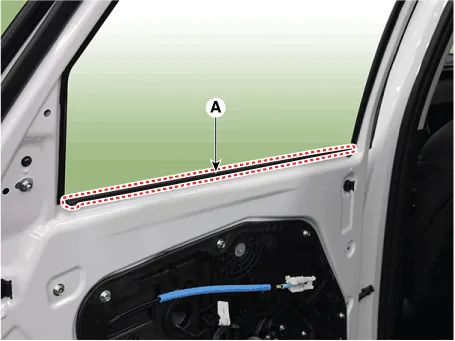

2.Remove the rear door belt inside weatherstrip (A).

3.To install, reverse removal procedure.



• When installing, install it by first contacting the inside part.
