Hyundai Tucson (NX4) 2022-2026 Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Switch

Hyundai Tucson: Power Door Mirrors / Power Door Mirror Switch

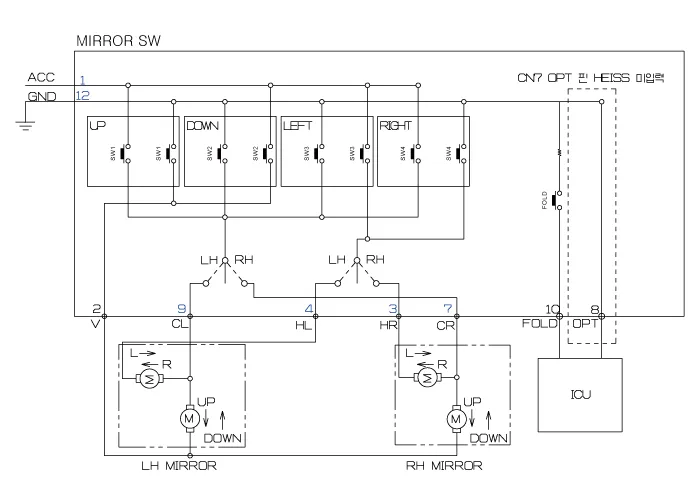

- Circuit Diagram

- Inspection Diagnosis with diagnostic tool

1.In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (diagnostic tool).The diagnostic system (diagnostic tool) provides the following information.

(1)Fault Code Searching : Checking failure and code number (DTC)

(2)Data Analysis : Checking the system input/output data state

(3)Actuation test : Checking the system operation condition

(4)S/W Management : Controlling other features including system option setting and zero point adjustment

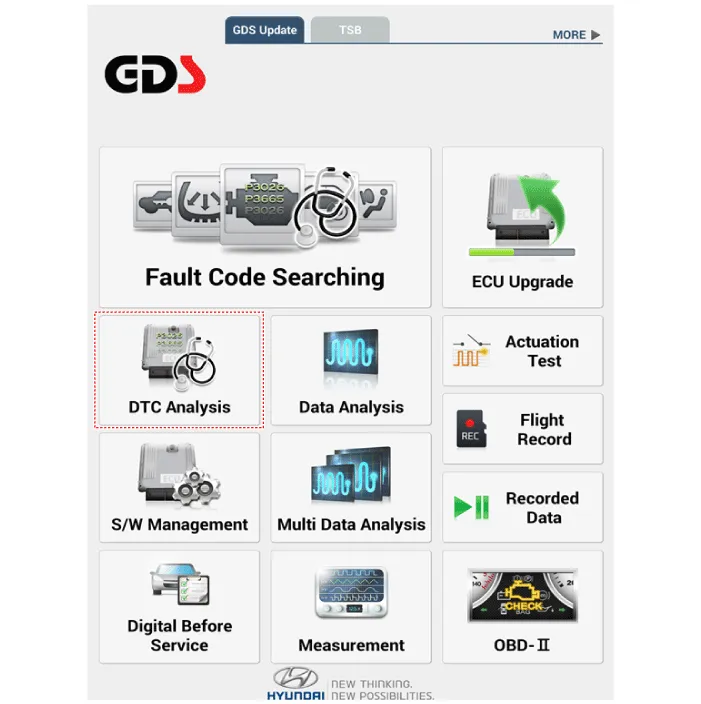

2.If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".

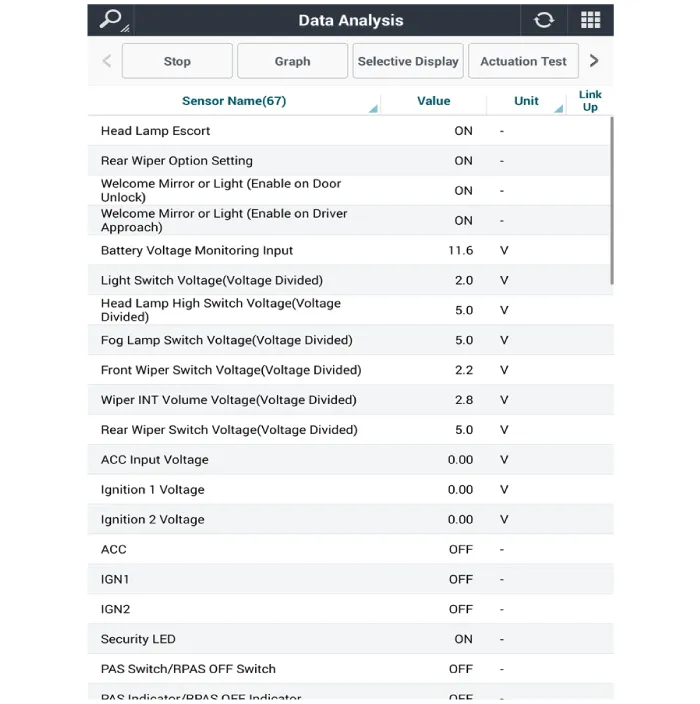

3.If check current status, select the "Data Analysis" and "Car model".

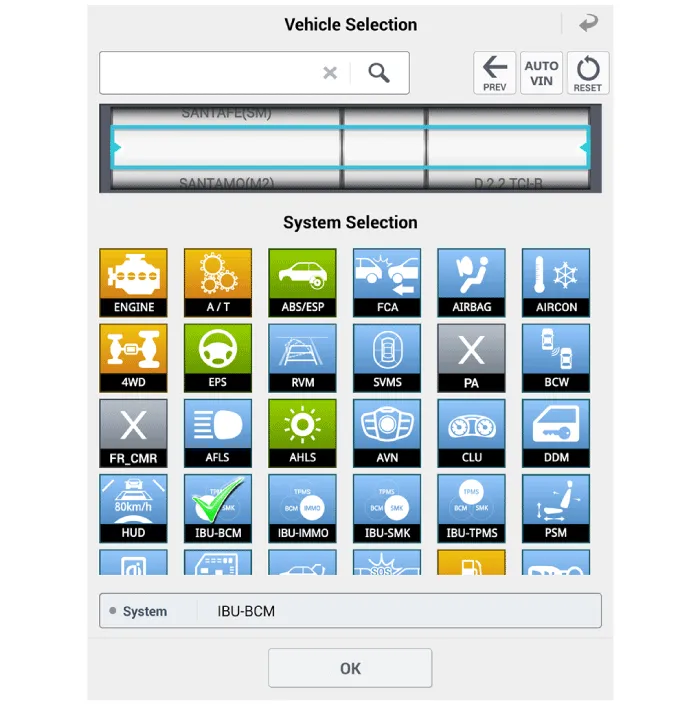

4.Select the 'IBU_BCM' to search the current state of the input/output data.

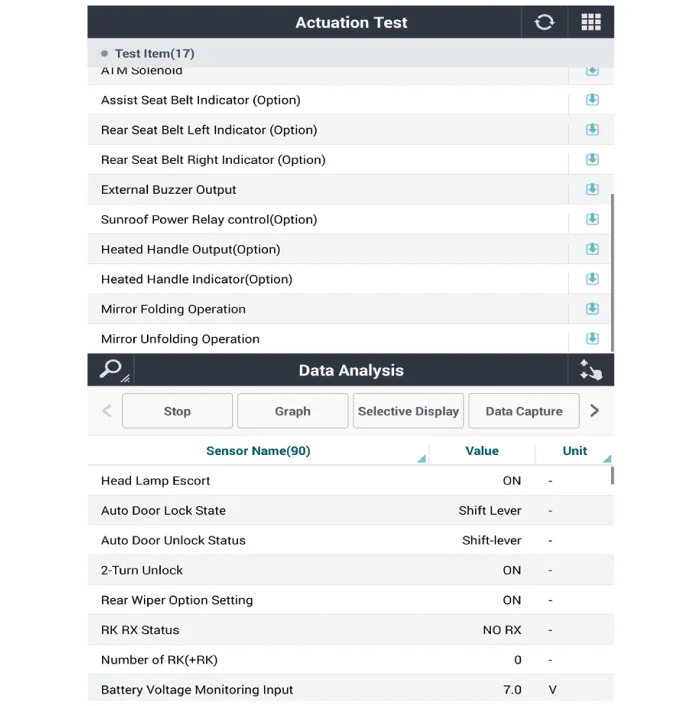

5.To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the front door trim.(Refer to Body - "Front Door Trim")

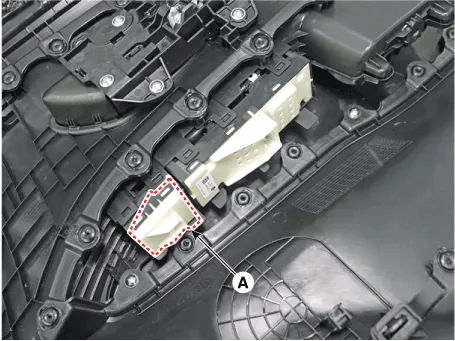

3.Remove the mirror switch assembly (A)

- Installation

1.Install the power mirror switch.

2.Install the front door trim after connecting the connector.

3.Connect the negative (-) battery terminal.

Components and Components Location

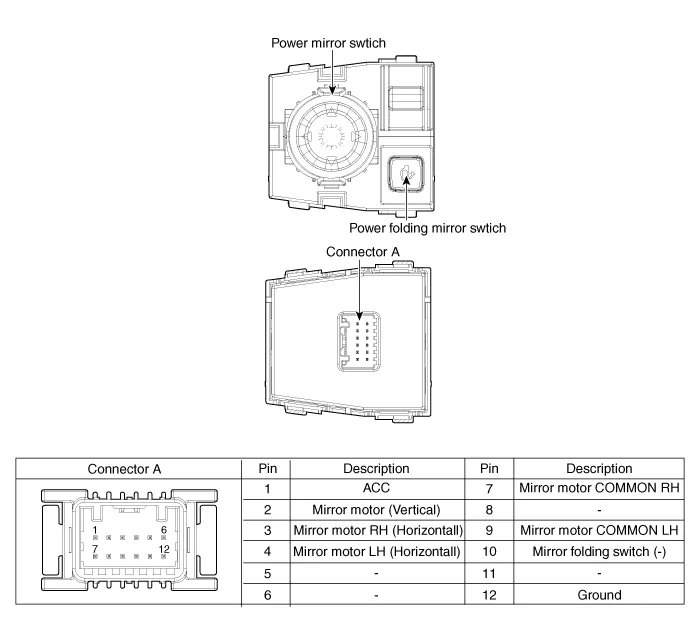

- Component Location 1. Power door mirror2. Power door mirror switch3. Power folding mirror switch ...

Power Door Mirror Actuator

- Removal • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • Put on gloves to prevent hand ...
