- Inspection Power Door Lock Switch Inspection

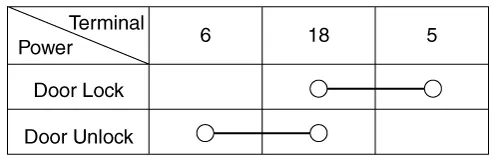

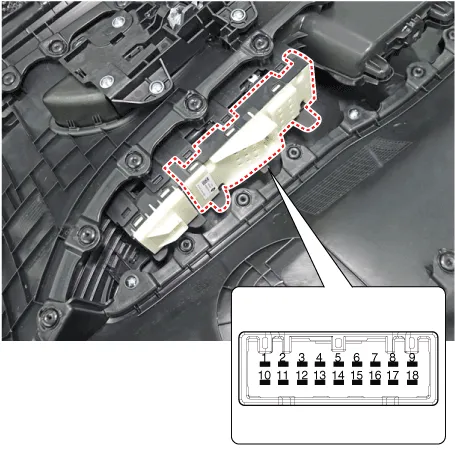

1.1. Check for continuity between the terminals. If there is an abnormality, replace the switch.

Diagnosis with Diagnostic Tool

1.In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system.The diagnostic system provides the following information.

(1)Fault Code Searching : Checking failure and code number (DTC)

(2)Data Analysis : Checking the system input/output data state

(3)Actuation test : Checking the system operation condition

(4)S/W Management : Controlling other features including system option setting and zero point adjustment

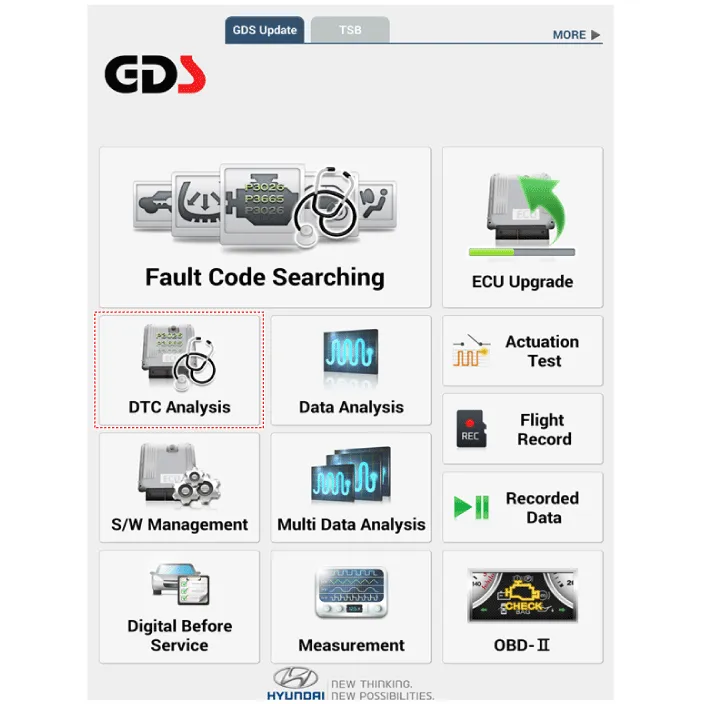

2.If diagnose the vehicle by diagnostic tool, select "DTC Analysis" and "Vehicle".

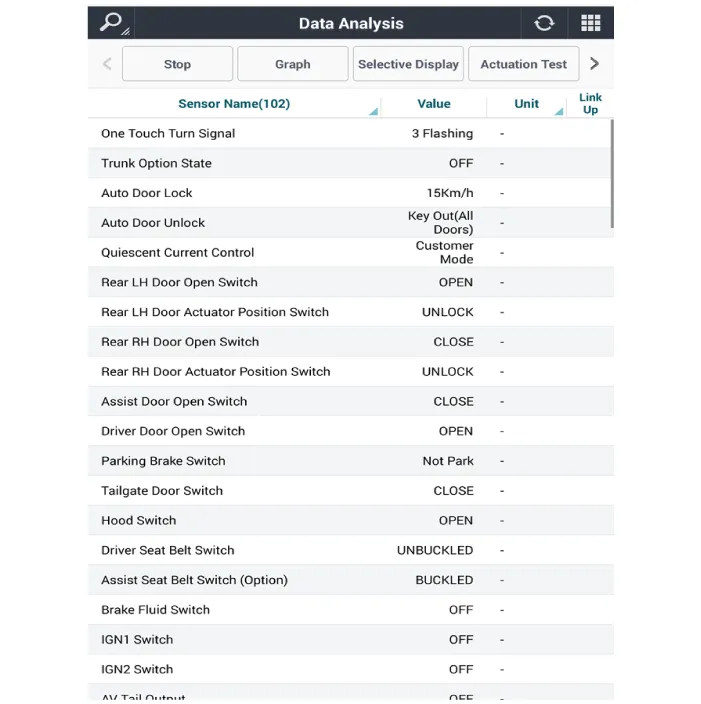

3.If check current status, select the "Data Analysis" and "Car model".

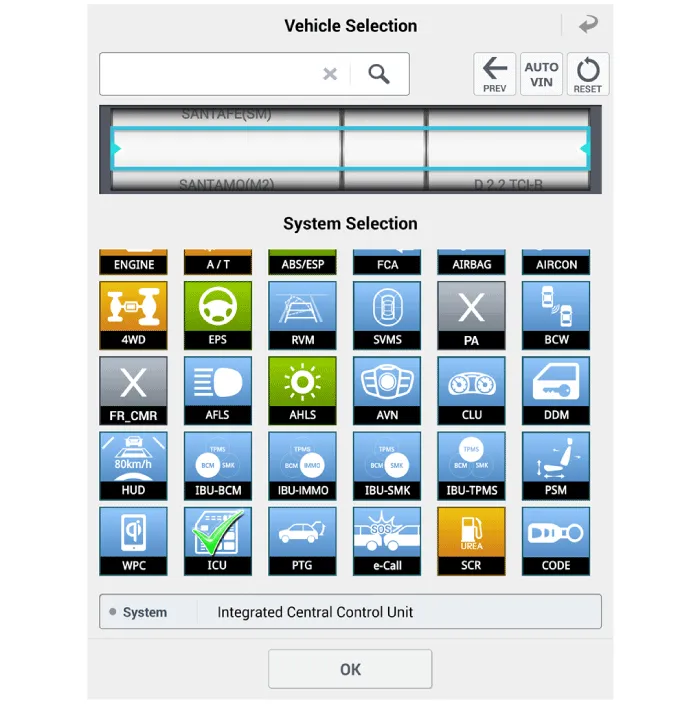

4.Select the 'ICU' to search the current state of the input/output data.

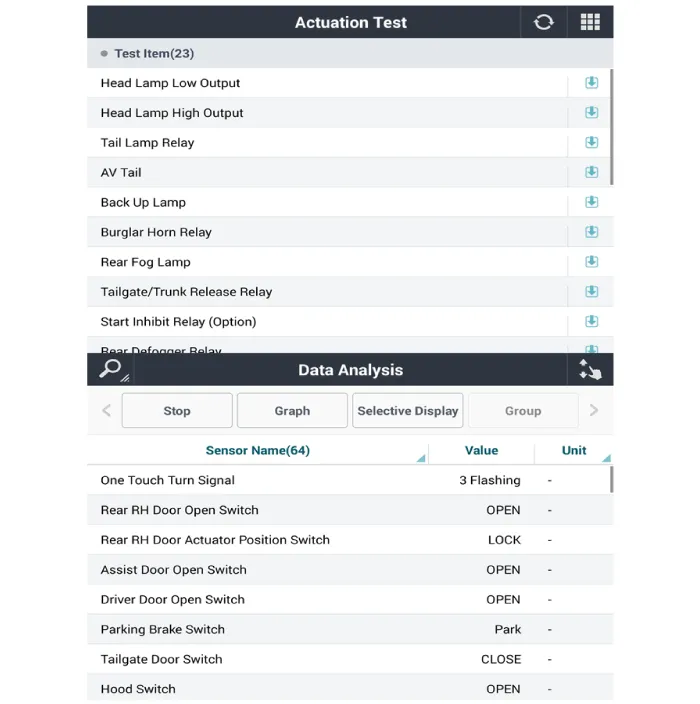

5.To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.

- Removal Driver Power Door Lock Switch

1.Disconnect the negative (-) battery terminal.

2.Remove the front door trim.(Refer to Body - "Front Door Trim")

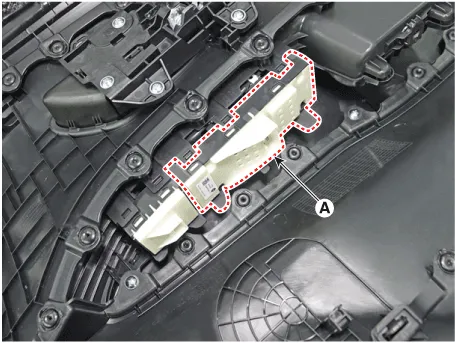

3.Remove the power window switch assembly (A).

- Installation Driver Power Door Lock Switch

1.Install the power door lock swtich assembly.

2.Install the front door trim.
