Hyundai Tucson: Engine Control System / Mass Air Flow Sensor (MAFS)

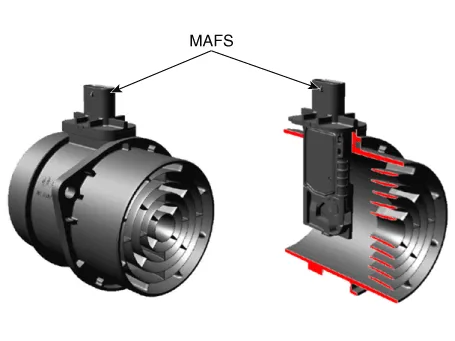

- Description MAFS uses a hot-film type sensing element to measure the mass of intake air entering the engine, and send the signal to ECM.A large amount of intake air represents acceleration or high load conditions while a small amount of intake air represents deceleration or idle. The ECM uses this information to control the EGR solenoid valve and correct the fuel amount.

- Specification
ItemSpecification
Nominal Voltage (V)5
Operation Voltage (V)4.85 - 5.15
Current Consumption (mA)Max. 30

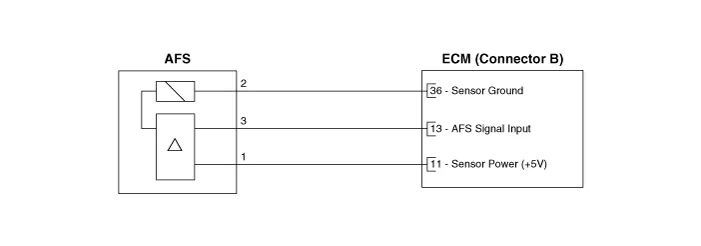

- Circuit Diagram

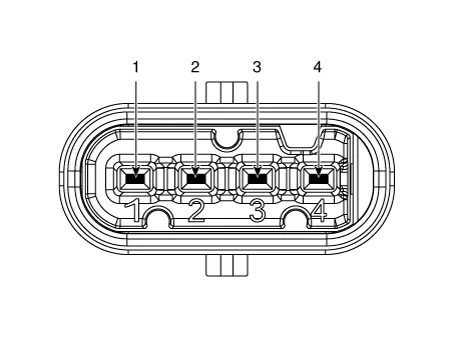

Harness Connector

- Inspection

1.In the engine control system, failure can be quickly diagnosed by using the diagnosis tool.

(1)Self diagnosis : Checking failure and code number (DTC).

(2)Current data : Checking the system input/output data state.

(3)Actuation test : Checking the system operation condition.

(4)Additional function : Controlling other features including system option setting and zero point adjustment.

Component Inspection

1.Check the MAFS visually.

(1)Mounting direction correct.

(2)Any contamination, corrosion or damage on connector.

(3)Air cleaner's clogging or wet.

(4)MAFS cylinder's deforming or blocking by any foreign material.

2.Measure the waveform of the AFS using the diagnosis tool.(Refer to - "DTC Diagnosis Guide")

- Removal

1.Turn the ignition switch OFF and disconnect the battery (-) cable.

2.Disconnect the mass air flow sensor connector (A) and the installation clamp (B).

3.Remove the intake hose (C).

Tightening Torque :3.0 - 5.0 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb-ft)

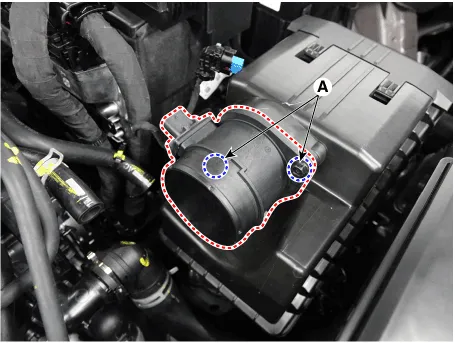

4.Remove the installation bolts (A), and then remove the sensor from the air cleaner.

Tightening Torque :4.0 - 5.8 N.m (0.4 - 0.6 kgf.m, 2.8 - 4.3 lb-ft)

- Installation



• Install the component with the specified torques.

• Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.



• Be careful not to damage the sensing element and the honey cell.

1.Install in the reverse order of removal.
