Hyundai Tucson: Driver Assistance System / Manual Speed Limit Assist (MSLA). Manual Speed Limit Assist Operation

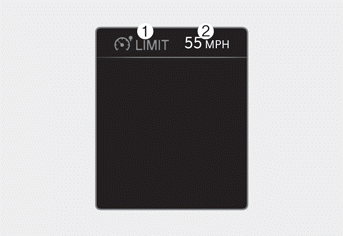

1 Manual Speed Limit Assist indicator light
2 Set speed

Manual Speed Limit Assist allows you to set a self-imposed maximum speed limit. If you drive over the set speed, Manual Speed Limit Assist blinks and chimes until your vehicle speed decreases below the set speed.

Manual Speed Limit Assist Operation

To set speed limit

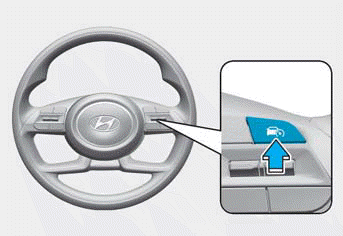

1. Press and hold the Driving Assist () button at the desired speed. The Manual Speed Limit Assist () indicator light illuminates on the instrument cluster.

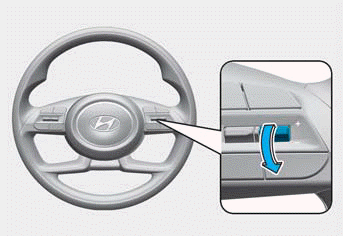

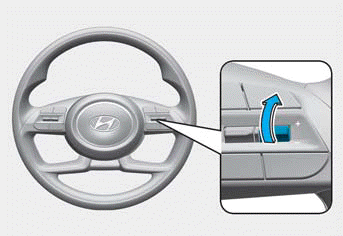

2. Push the + switch up or - switch down to change the set speed.

Push and hold to increase or decrease to the nearest multiple of five (multiple of ten in km/h), and then increase or decrease by 5 mph (10 km/h).

3. Check the set speed limit on the instrument cluster.

If you want to drive over the set speed, depress the accelerator pedal far enough to activate the kickdown mechanism.

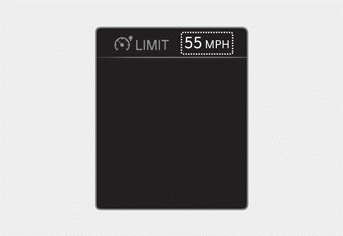

The set speed limit blinks and chime sounds until your vehicle speed decreases below the set speed limit.

Information

• When the accelerator pedal is not depressed beyond the pressure point, your vehicle speed maintains within the speed limit.
• A clicking sound may be heard from the kickdown mechanism.

To temporarily cancel Manual Speed Limit Assist

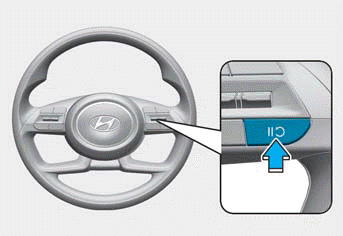

Press the button to temporarily cancel the set speed limit. The set speed turns off, but the Manual Speed Limit Assist () indicator light stays on.

To resume Manual Speed Limit Assist

Push the +/- switch or button.

If you push the + switch up or – switch down, the set speed is set to the current speed.

If you press the button, the set speed resumes to the previously set speed limit.

To turn off Manual Speed Limit Assist

Press the Driving Assist () button to turn off Manual Speed Limit Assist off. The Manual Speed Limit Assist () indicator light turns off.

Always press the Driving Assist () button to turn off Manual Speed Limit Assist when not in use.

WARNING

To prevent serious injury or death:

• Set your vehicle speed to the speed limit for the road and use the appropriate unit (mph or km/h) for your country.
• Keep Manual Speed Limit Assist off when not in use, to avoid inadvertently setting a speed. Check that the Manual Speed Limit Assist () indicator light is off.
• Always drive defensively and pay attention to the driving task.
