Hyundai Tucson: Body Electrical System / Fuel Filler Door
Components and Components Location

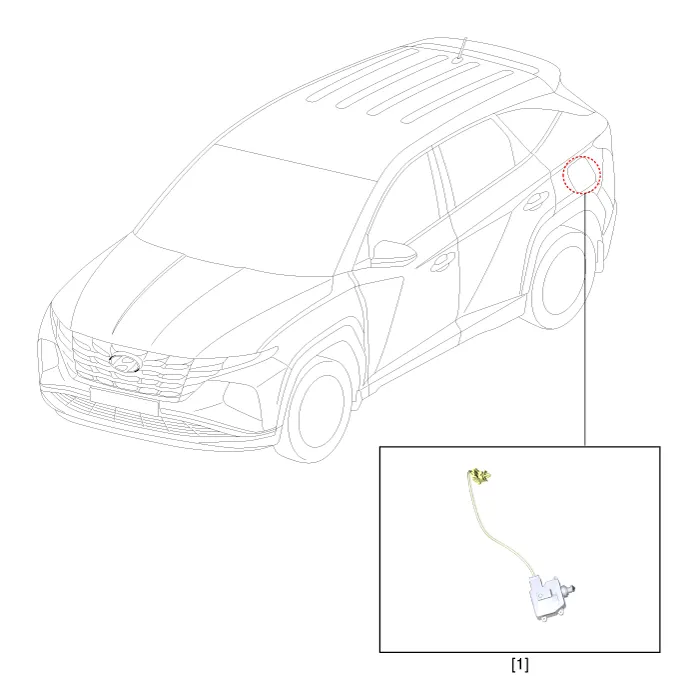

1. Fuel filler door release actuator
Fuel Filler Door Release Actuator
1.Disconnect the negative (-) battery terminal.
2.Remove the fuel filler housing after opening the fuel filler door.(Refer to Body - "Fuel Filler Door")

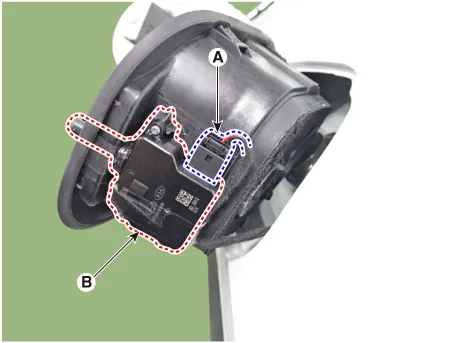

3.Disconnect the connector (A) and then remove tht release actuator (B) after loosening mounting screws.

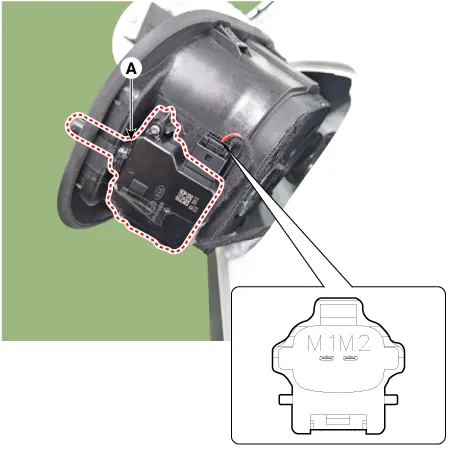

4.Check for continuity between terminal No. 1 and No. 2. If there is no continuity, replace the fuel filler door release actuator (A).
IMS Control Switch
- Components
- Removal
1.Disconnect the negative (-) battery terminal.
2.Remove the front door trim.(Refer to Body - "Front Door Trim")
3. Remove the IMS switch (A) after loosening moun ...
