Hyundai Tucson (NX4) 2022-2025 Service Manual / Body (Interior and Exterior) / Front Door / Front Door Side Weatherstrip

Hyundai Tucson: Front Door / Front Door Side Weatherstrip

- Replacement [Front door side weatherstrip]

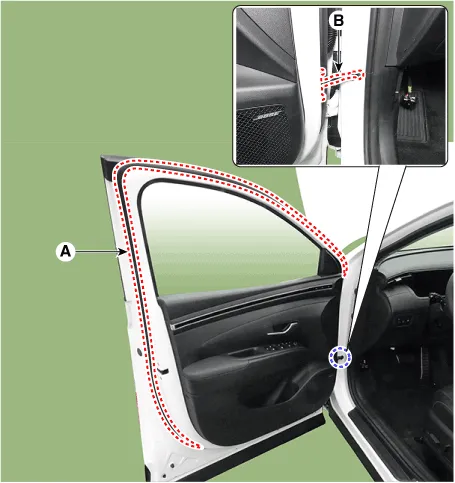

1.Loosen the front door checker (B) mounting bolt.

Tightening torque :16.7 - 21.6 N.m (1.7 - 2.2 kgf.m, 12.3 - 15.9 lb-ft)

2.Detach the clips, then remove the front door side weatherstrip (A).

3.To install, reverse removal procedure.

[Front door body side weatherstrip]

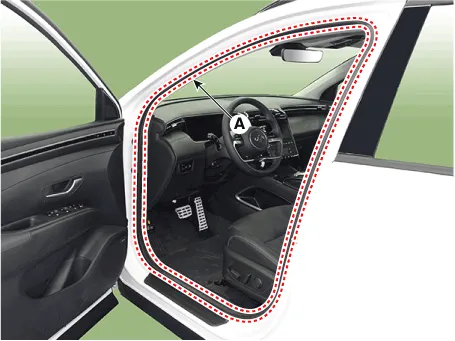

1.Remove the front door body side weatherstrip (A).[LH]

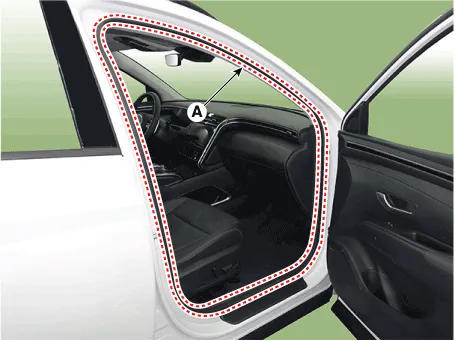

[RH]

2.To install, reverse removal procedure.
