Hyundai Tucson: Front Door / Front Door Outside Handle
1. Front door outside handle
• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Put on gloves to prevent hand injuries.
1.Disconnect the negative ( - ) battery terminal.

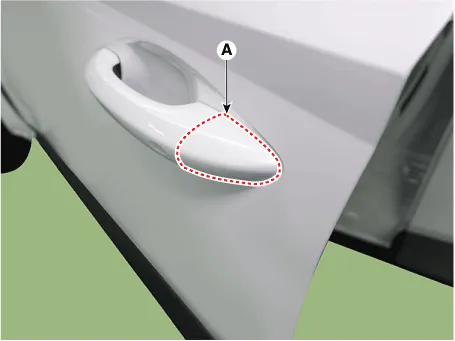

2.Remove the front door outside handle cover (A).

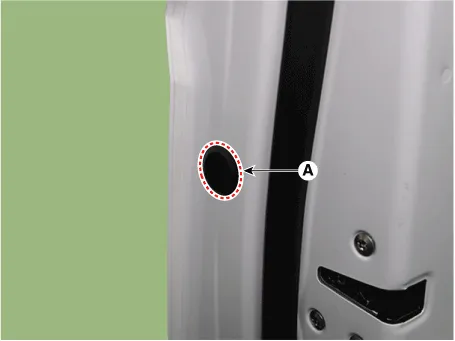

3.Remove the plug hole (A).

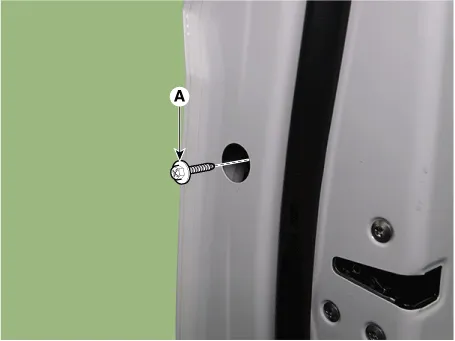

4.Loosen the front door outside handle mounting bolt (A).

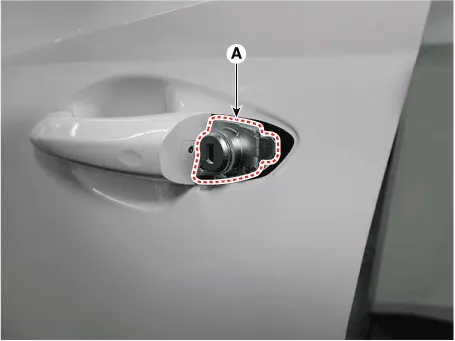

5.Remove the front door lock assembly (A).

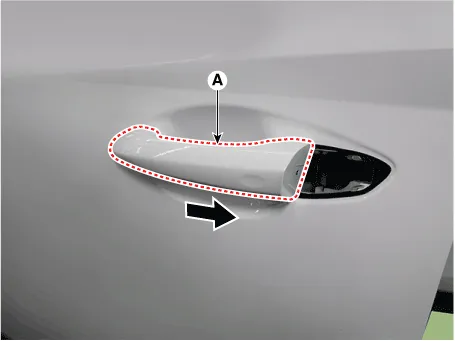

6.Remove the front door outside handle (A) by sliding it forward.

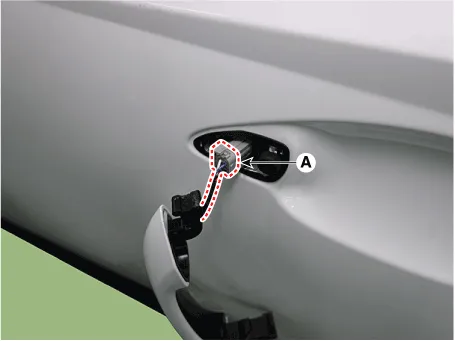

7.Disconnect the front door outside handle connector (A).
8.To install, reverse removal procedure.

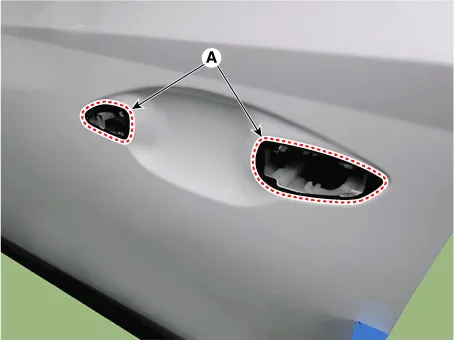

• Be sure to install the outside handle pad (A) between the outside handle and the door panel.
• Make sure the connector is connected properly.
• Make sure the door locks / unlocks and opens / closes properly.
Front Door Module
- Components Location

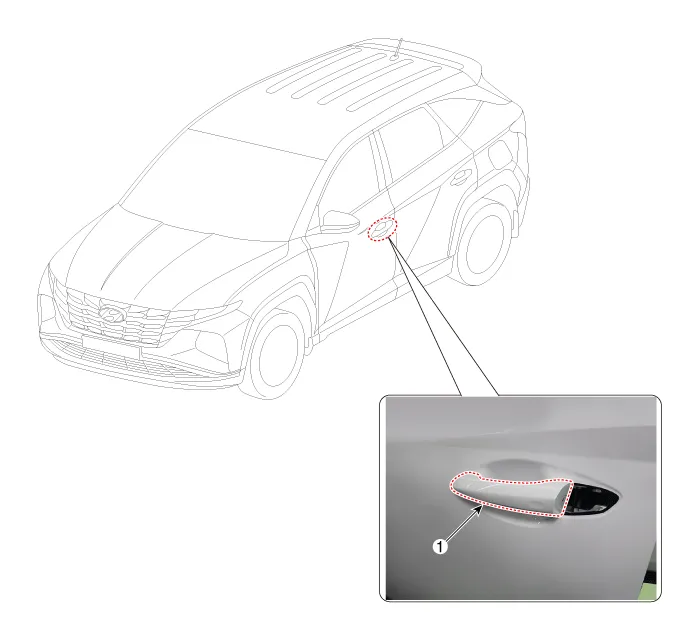

1. Front door module
- Replacement
• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent dam ...
Front Door Belt Outside Weatherstrip
- Replacement
1.Remove the outside rear view mirror.(Refer to Mirror - "Outside Rear Viwe Mirror")
2.Pull down the front door window glass to the lowest level by pressing the power window glass s ...
