Hyundai Tucson: Floor Console / Floor Console Assembly

- Replacement

[SBW type]



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Disconnect the negative (-) battery terminal.

2.Remove the console upper cover (A).

3.Disconnect the console upper cover connectors (A).

4.Remove the console side cover (A).[LH]

[RH]

5.Remove the storage box mat (A).

6.Loosen the mounting bolts and screws, remove the floor console assembly (A).

7.Disconnect the floor console connector (A).

8.To install, reverse removal procedure.



• Make sure the connector is connected properly.

• Replace any damaged clips (or pin-type retainers).

[SBC type]



• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

• Put on gloves to prevent hand injuries.



• Take care not to bend or scratch the trim and panels.

1.Disconnect the negative (-) battery terminal.

2.Remove the console upper cover.[AT]

(1)To remove the gear knob & gear boots (A) pull both of it up.

(2)Remove the console upper cover (A).

(3)Disconnect the console upper cover connector (A).

[MT]

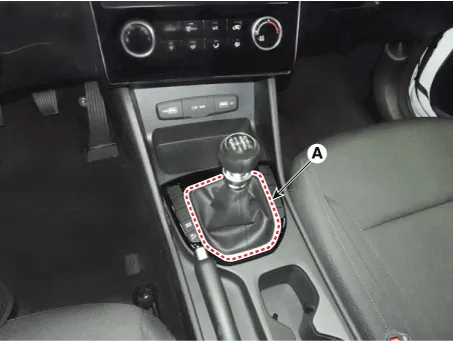

(1)Separate the gear boots (A).



• Do not remove the gear knob (A).

(2)Remove the console upper cover (A).

(3)Disconnect the console upper cover connector (A).

3.Remove the console tray (A).

4.Disconnect the connectors (A).

5.Remove the console side cover (A).[LH]

[RH}

6.Remove the storage box mat (A).

7.Disconnect the connector (A).

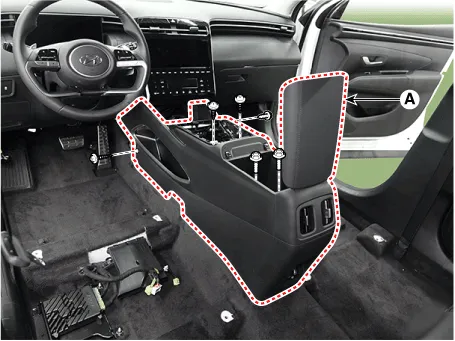

8.Loosen the mounting bolts and screws, remove the floor console assembly (A)

9.To install, reverse removal procedure.



• Make sure the connector is connected properly.

• Replace any damaged clips (or pin-type retainers).

    Components and Components Location
    - Component Location [SBW type] 1. Floor console side cover2. Floor console tray assembly3. Floor console upper cover assembly4. Floor console rear mounitng bracket5. Floor console assembly ...

    Rear Console Cover
    - Component Location 1. Rear console cover - Replacement     • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent da ...
