Hyundai Tucson: Body Electrical System / Auto Head Lamp Leveling Device

Components and Components Location

- Component Location

1. Head lamp leveling actuator (Inside head lamps)
2. Head lamp leveling switch


Head Lamp Leveling Switch

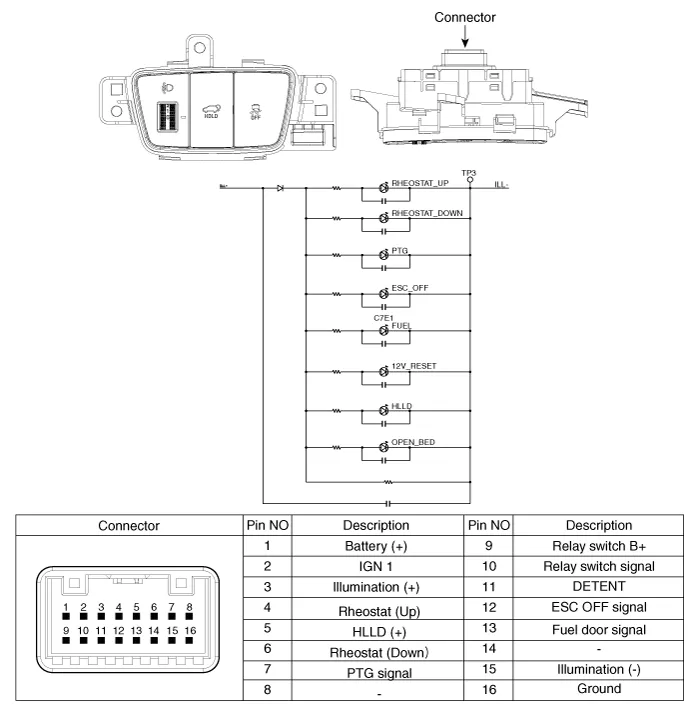

- Circuit diagram

- Removal

1.Disconnect the negative (-) battery terminal.

2.Remove the crash pad lower panel.(Refer to Body - "Crash Pad Lower Panel")

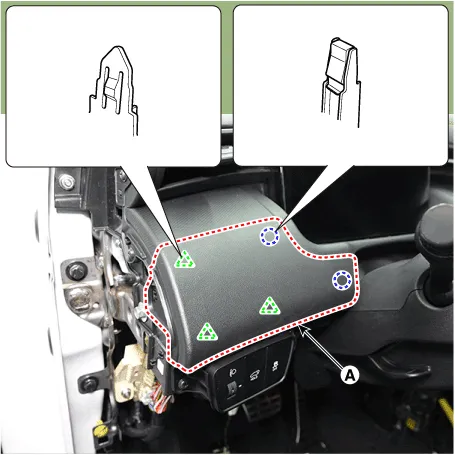

3.Loosen the mounting screw and remove the crash pad garnish [LH] (A).

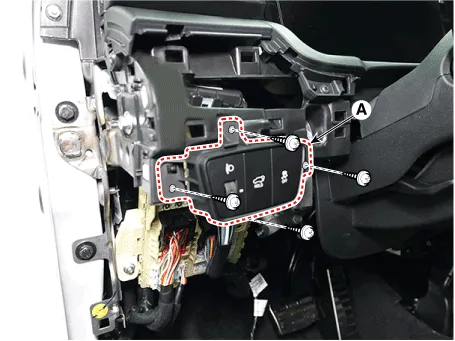

4.Loosen the mounting screws and remove the crash pad lower switch assembly (A).

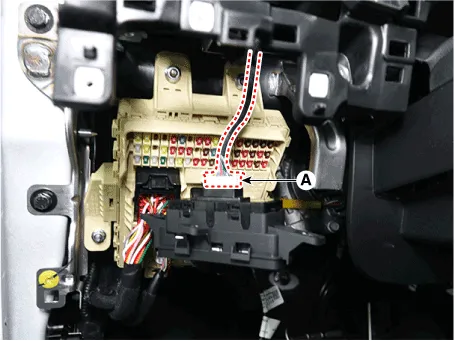

5.Disconnect the crash pad lower switch connector (A).

- Installation

1.Instahh the crash pad lower switch.

2.Install the crash pad garnish [LH].

3.Install the crash pad lower panel.

4.Connect the negative (-) terminal
