- Removal and installation Air Cleaner Assembly

1.Disconnect the battery negative terminal.

2.Remove the engine cover.(Refer to Engine And Transaxle Assembly - “Engine Cover”)

3.Remove the air duct (A).

4.Remove the air cleaner assembly.

(1)Disconnect the air flow sensor connector (A).

(2)Disconnect the breather hose (B,C).

(3)Disconnect the PCV hose (D).

(4)Disconnect the intake hose (E).

(5)Disconnect the air cleaner assembly (F).

Tightening torqueHose clamp : 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)Air cleaner bolts : 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

5.Install in the reverse order of removal.

Air cleaner element replacement

1.Remove the air cleaner element cover (A) by lifting it off.

2.Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.

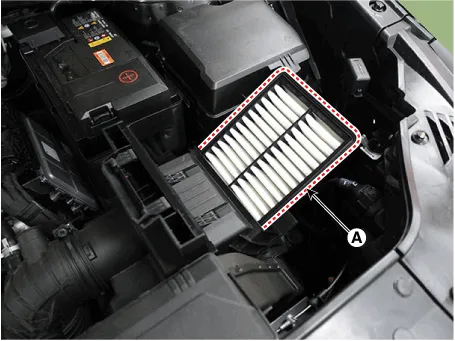

3.Replace the air cleaner element (A) with a new one.

• When removing the air cleaner element, pull the air cleaner element handle forward.

• If there is foreign substances in the air cleaner assembly, clean the inside of air cleaner assembly and then replace the element.

4.Lock the air cleaner element camshaft and then close the air cleaner element cover.
