Hyundai Tucson: Driver Assistance System / Rear View Monitor (RVM)

Rear View Monitor uses the wide-rear view camera to display the area behind your vehicle to assist you when parking or backing up.

Information

Refer to the "Driver Assistance Sensors" section in this chapter for the location and the general precautions of wide-rear view camera.

Rear View Monitor Settings

Camera settings

To change the settings of Rear View Monitor's Display Contents or Display Settings, press the setup icon () on the screen while Rear View Monitor is operating, or go to Setup > Vehicle > Driver Assistance > Parking Safety > Camera Settings from the Settings menu in the infotainment system when the engine is on.

• If Display Contents is selected, you can change settings for Extended Rear View Monitor or Rear View Parking Guidance.
• If Display Settings is selected, you can change the screen’s brightness and contrast.

Extended Rear View Monitor

If Extended Rear View Monitor is selected, the rear view maintains on the screen when parking.

Rear View Parking Guidance

If Rear View Parking Guidance is selected, the parking guideline appears when the rear view and rear top view is displayed.

Information

• The rear view horizontal guideline shows the distance of about 1.6 feet (0.5 m), 3.3 feet (1 m) and 7.6 feet (2.3 m) from the vehicle.
• The rear top view horizontal guideline shows the liftgate opening distance of about 4.9 feet (1.5 m) from the vehicle.

Information

You can select Driving Safety Priority for Rear View Monitor from the Settings menu. For more information, refer to the "Driver Assistance System Settings" section in this chapter.

Rear View Monitor Operation

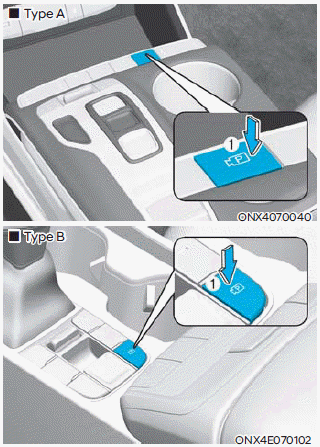

Parking/View button

Press the Parking/View button 1 to turn on Rear View Monitor.

Press the button again to turn off the function.

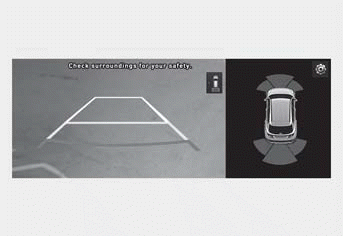

Rear view

The rear view appears on the screen when parking.

Turns on if:

• You shift the gear to R (Reverse).
• You press the Parking/View button

  Rear View Monitor Malfunction and Limitations

  Rear View Monitor malfunction

  When Rear View Monitor is not working properly, or the screen flickers, or the camera image does not display normally, have the vehicle inspected by an authorized HYUNDAI dealer.

  Limitations of Rear View Monitor

  When your vehicle is stopped for a long time in winter or when your vehicle is parked in an indoor parking lot, the exhaust fumes may temporarily blur the image.

  WARNING

  • Always turn your head to check blind spots. The rear view camera does not cover the entire area behind your vehicle.
  • The perceived distance on the screen may differ from the actual distance.
  • Always keep the rear view camera lens clean. If the lens is blocked or covered, the Rear View Monitor may not operate normally. Do not clean with strong chemicals containing high alkaline or volatile organic solvents (e.g. gasoline, acetone).
