Hyundai Tucson: Crankcase Emission Control System / Positive Crankcase Ventilation (PCV) Valve

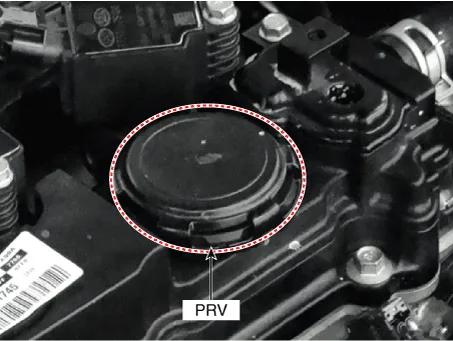

- Description Pressure Regulating Valve (PRV) is installed to prevent the over pressure of combustion gas through the piston ring and onto the crankcase.

- Operating Principle
Engine conditionStopIdle or DecelerationNormal operating conditionAccelerating in the high load area
Intake manifold pressure0HighAppropriateLow
PRV (Diaphragm)Full openA little openAppropriate openConsiderable open
Amount of blow-by gas0A littleMiddleA lot

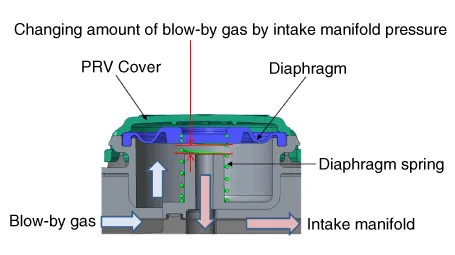

Diaphragm component part


- Removal

1.Remove the cylinder head cover.Refer to Engine Mechanical System - "Cylinder Head Cover")

- Installation

1.Install in the reverse order of removal.

    Description and Operation
    - Description A : Crankcase pressure regulating valve (PRV)B : Breather hoseC : Intake hoseD : Air flowE : Intake manifoldF : Cylinder block ① Blow-by gas flow② Blow-by gas inflow to the c ...

    Crankcase Check Valve
    - Removal and Installation     • Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift. ...
